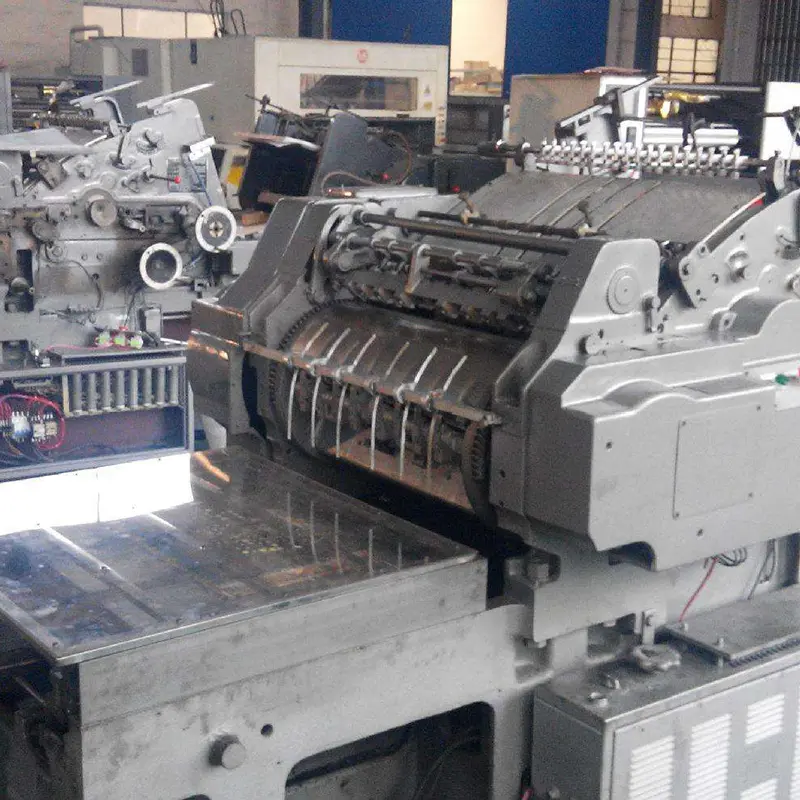

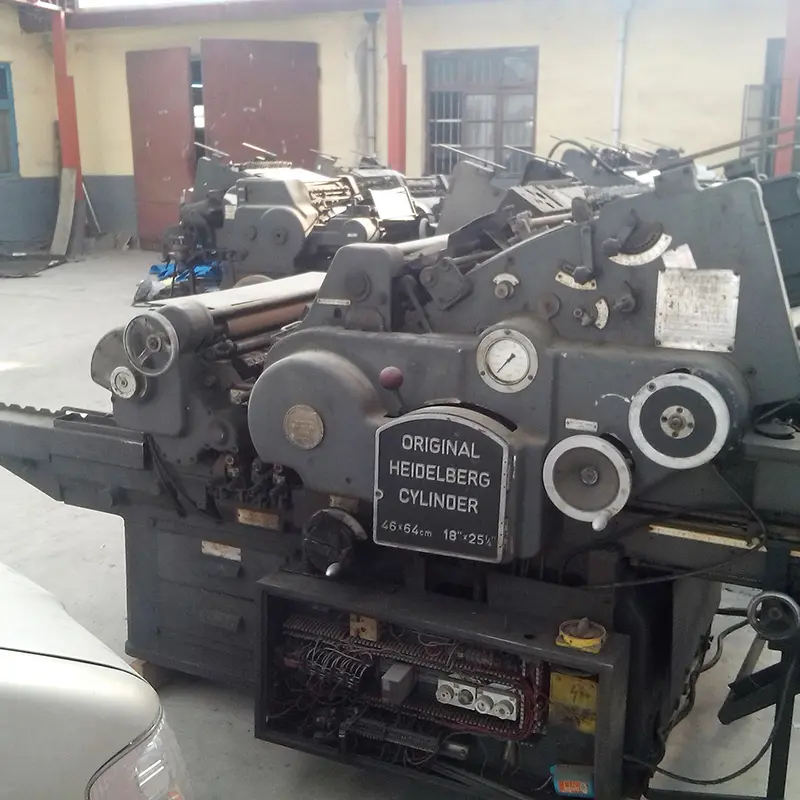

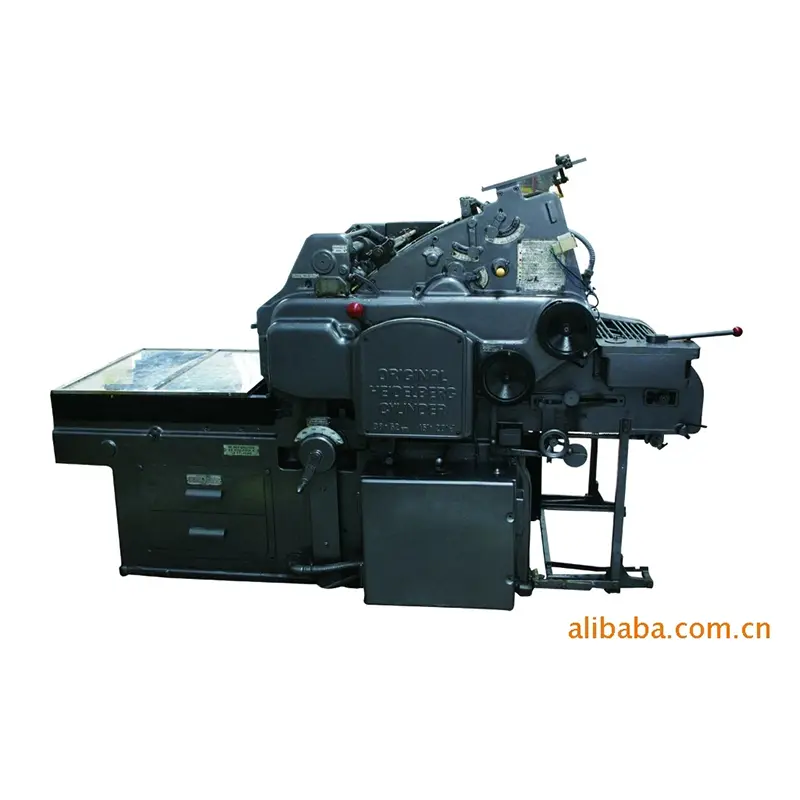

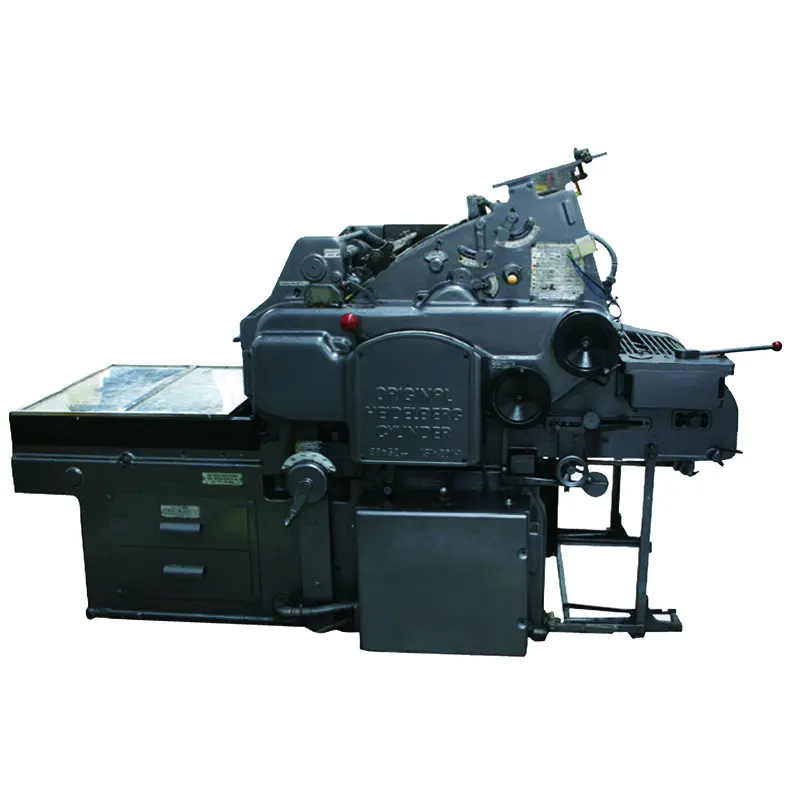

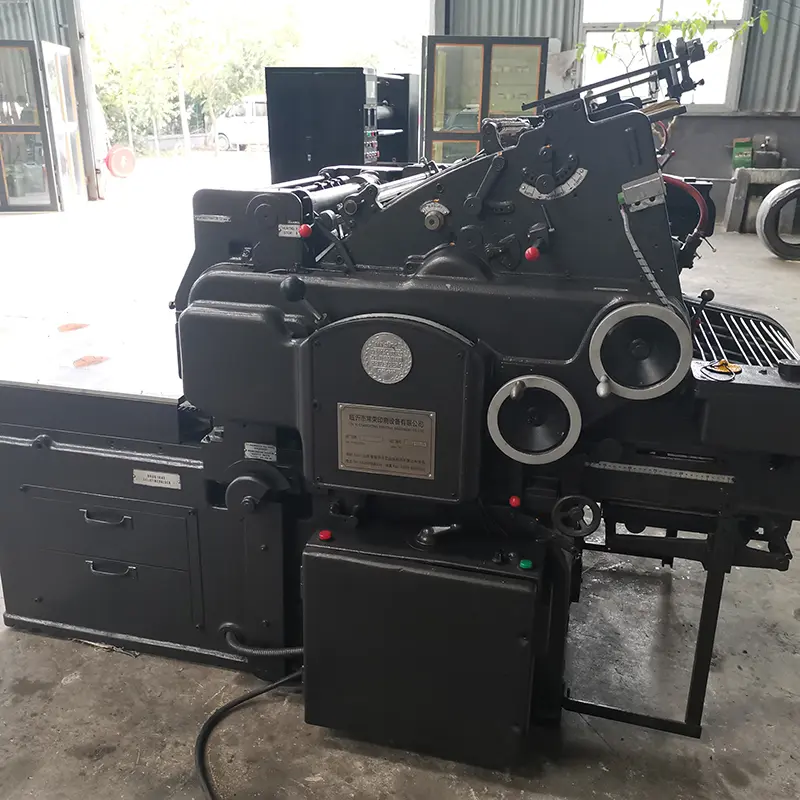

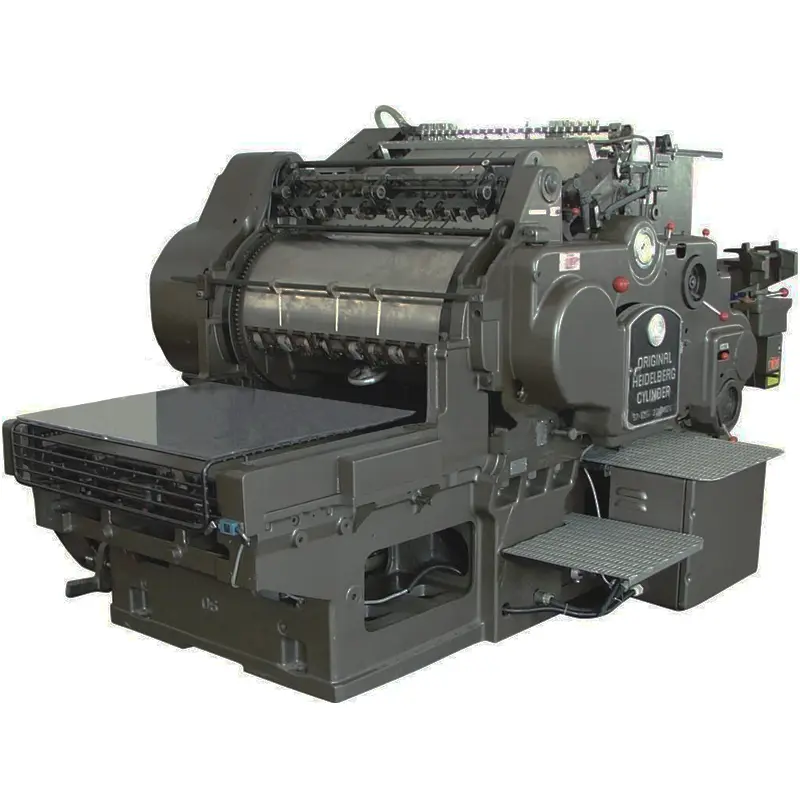

Full-automatic cylinder flat die-cutting machine
Technical Data
| Max paper size | 460mm×585mm |
| Min paper size | 140mm×180mm |
| Gripper margin | 6-8mm |
| Stock range | 50-350g/㎡ |
| Cylinder-packing thickness | 1.2mm |
| Max foil stamping speed | 2500 |
| Max pile height at feeder | 325mm |
| Machine weight | 3 3tons |
| Main motor power | 5KW |
| Heating plate power | 5KW |
| Dimension | 3000×1600×1700mm |
Accessories
| Hex key | 1set |
| Flat-head screwdriver | 1pc |
| Phillips screwdriver | 1pc |
| Scraper | 2 pcs (1 large, 1 small) |
| Scissors | 1pc |
| Steel ruler | (300mm) – 1 pc |
| Open-end wrench set | (8-24mm) – 1 set |
| Adjustable wrench | (0-300mm) – 1 pc |
| Roller blanket steel sheet | 1 pc |
description2
Beyond its technical capabilities, this equipment demonstrates remarkable versatility across industrial applications. Its multi-material compatibility extends beyond conventional paper substrates to include synthetic materials like PET films, aluminum foils, and composite laminates - a critical feature for modern sustainable packaging solutions. The automated production line configuration incorporates intelligent feeding mechanisms and computerized waste removal systems, achieving uninterrupted operation cycles that boost productivity by 40-60% compared to traditional flatbed systems. These operational efficiencies have established the machine as essential infrastructure in sectors ranging from food packaging to automotive component manufacturing. Furthermore, its energy-efficient design and reduced material waste align with contemporary environmental standards, while the modular construction allows for rapid tooling changes to accommodate custom orders, making it a cornerstone technology for Industry 4.0 smart manufacturing environments.
