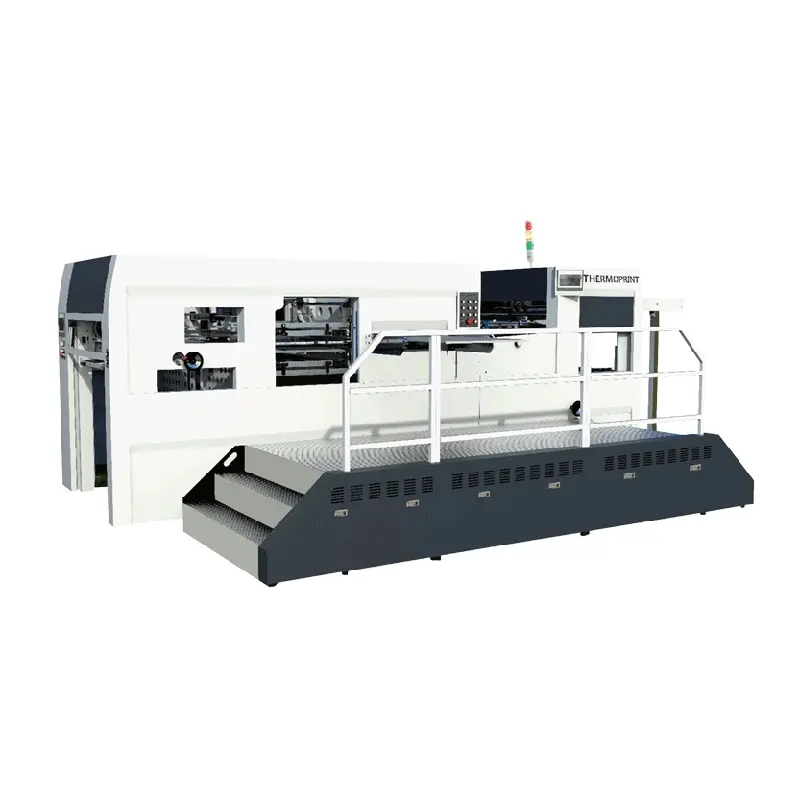

CR 1060 Automatic Stripping Die Cutting Machine
Delivering unit
Paper damping and Deceleration adopts mechanical paper receiving and marking brush mechanism to make paper flat paper device.
Die cutting unit
Safety design of die cutting base plate and knife plate,move easily. the design of rotary device makes the board adjustment faster and more convenient. Pneumatic stability recovery. When the machine is running, the paper delivery and paper lock device makes the upper plate frame fixed More firmly, more accurately and more time-saving.
Main Transmission
Worm shaft material Is made of German alloy copper, Precision machine processing, high precision, especially wear-resistant. Bent axle, worm is use forging grinding and high quenching process, long service life. The swing rod size is increased, the pendulum shaft is thickened, so the die cutting is high, Wear-resisting durable.
Pneumatic clutch
Imported components to lower noise and pneumatic impact for stable and safe running. Comply with European export standards. The clutch is more stable using the Italian yuyi.
Gripper bar and Chain
Special super-hard aluminum alloy type material is used for the Gripper bar, the surface is anodized, accurate Die cutting can be realized in the adjustment Operation, perfect precision control; gripper bar Main chain adopt special chains, The strength Is relatively increased by about 45%, improve Stability of precision, prolong service life.
Main Chain drive
Chain of main machine is made by Renold, Germany, Taiwan intermittent mechanism drive, improve precision of die cutting, ensure equipment safety, avoid machine damage, improve service life.
Man-machine interface
This machine adopts Imported high resolution man-machine interface for man-machine communication, it can monitor and display the running status of the machine in real time, provide detailed operation and troubleshooting Methods for machine adjustment and trouble shooting.
Electrical Unit
The machine is controlled by SIEMENS PLC, frequency conversion. All kinds of electrical components, the switch used in Japan, France, Taiwan and other famous brand products. Accurate operation control and stable performance.
Technical Data
| Max sheet size | 1060mm×760mm |
| Min sheet size | 420mm×350mm |
| Max die cutting size | 1050mm×750mm |
| Gripper margin | ≥6mm |
| Inner chase size | 1120mm×786mm |
| Stock range | 80-2000g/m2 paper 0.1-2mm paper ≤4mm corrugated |
| Die cutting accuracy | ≤±0.075mm(Die cutting ) |
| Max die cutting force | 300tons |
| Max die cutting speed | 7000s/h Die cutting |
| Max feeder pile height | 1600mm（wooden pallet included） |
| Max delivery pile height | 1500（wooden pallet included） |
| Air requirement | 0.6-0.7Mpa≥0.6m3/min |
| Net weight approx | About 16.5tons |
| Main motor wattage | 11KW |
| Full load wattage | 18KW |
| Overall dimension | 7500mm(L: Pre-load paper device included) × 4000mm (W: Platform included) ×2300mm(H) |
Electrical equipment layout
| PLC computer program controller | SIEMENS of Germany |
| Man-machine interface | SIEMENS of Germany |
| Principal machine transmission | anti-explosion OF Brazilian WEG |
| Contacts | OMRON of JAPAN |
| Optoelectronic switch | OMRON of JAPAN |
| Air switch | SCHNEIDER |
| Bearing | Swedish SKF |
| Transducer of main machine | SIEMENS of Germany |
| Reducing box | CPG of Taiwan |
| Main chain | RENORD of Germany |
| Intermittent mechanism | Taiwan |
| Server system | SIEMENS of Germany |
| Linear guide rail | HIWIN |
| Host protect | Torque protector |
| Temperature control system | SIEMENS of Germany |
| Oil supply system of main machine | WEILIANG of Taiwan |
