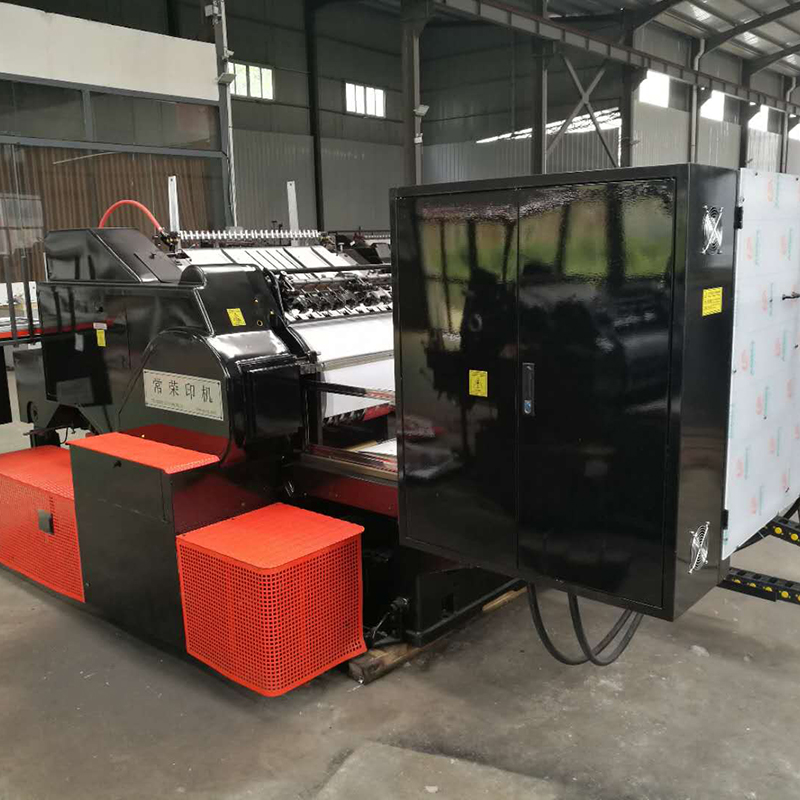

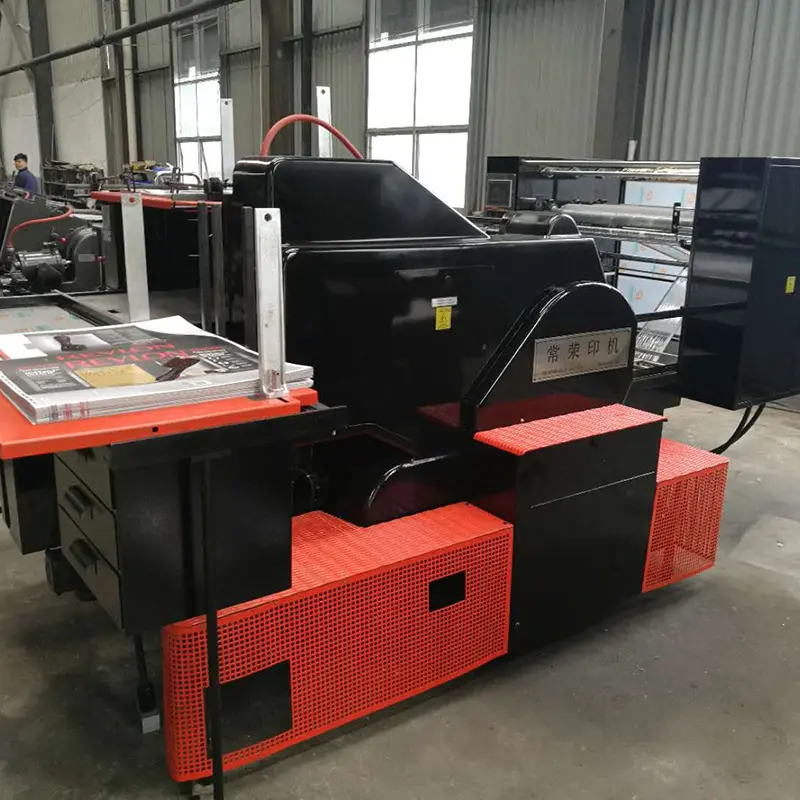

900 Fully automatic round flattening and hot stamping machine
Core Features
1. Extremely fast and efficient production
Equipped with imported servo drive system, the working speed is up to 2500 times/minute. Suitable for fine lines and large-sized on-site gold embossing paper. High set precision, perfectly adapted to the digital hot stamping positioning needs
2. Intelligent interactive system
Touch screen panel design, easy to control the set conditions Adjustable length of foil feed, number of jump steps Gold foil warning system real-time monitoring of the remaining amount of consumables
3. Wide range of applications
The product is used by many domestic enterprises, such as Colgate, Wuliangye, etc.
Equipped with imported servo drive system, the working speed is up to 2500 times/minute. Suitable for fine lines and large-sized on-site gold embossing paper. High set precision, perfectly adapted to the digital hot stamping positioning needs
2. Intelligent interactive system
Touch screen panel design, easy to control the set conditions Adjustable length of foil feed, number of jump steps Gold foil warning system real-time monitoring of the remaining amount of consumables
3. Wide range of applications
The product is used by many domestic enterprises, such as Colgate, Wuliangye, etc.
Technical Data
Max paper size | 640mm×900mm |
Min paper size | 290mm×400mm |
Max stamping size | 640mm×900mm |
Gripper margin | 8-10mm |
Stock range | 50-350g/㎡ |
Cylinder-packing thickness | 1.2mm |
Max foil stamping speed | 2500 |
Foil stamping precision | ±0.2mm |
Heating zones | 3 Three |
Temperature adjustable range | 30-200℃ |
Max pile height at feeder | 340mm |
Machine weight | 7.0 7.0tons |
Main motor power | 7.5KW |
Heating plate power | 8.5KW |
Dimension | 3850×2150×1750mm |
Electrical configuration table
1 | (PLC) | INOVANCE |
2 | (HMI) | INOVANCE |
3 | (VFD) | INOVANCE |
4 | (Servo) | INOVANCE |
Accessories
Hex key | 1set |
Flat-head screwdriver | 1pc |
Phillips screwdriver | 1pc |
Scraper | 2 pcs (1 large, 1 small) |
Scissors | 1pc |
Steel ruler | (300mm) – 1 pc |
Retaining ring | 30 pcs |
Spring | 20 pcs |
Foil feed roller | 4 pcs |
Open-end wrench set | (8-24mm) – 1 set |
Adjustable wrench | (0-300mm) – 1 pc |
High-temperature adhesive | 4 tubes |
Roller blanket steel sheet | 1 pc |
Hot stamping aluminum plate | 2 pcs |
