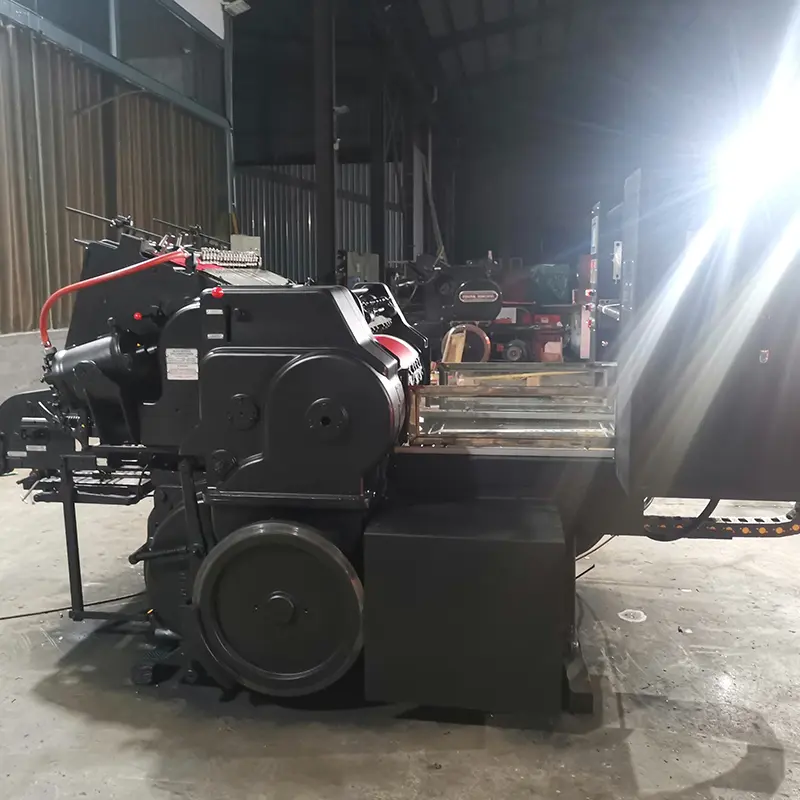

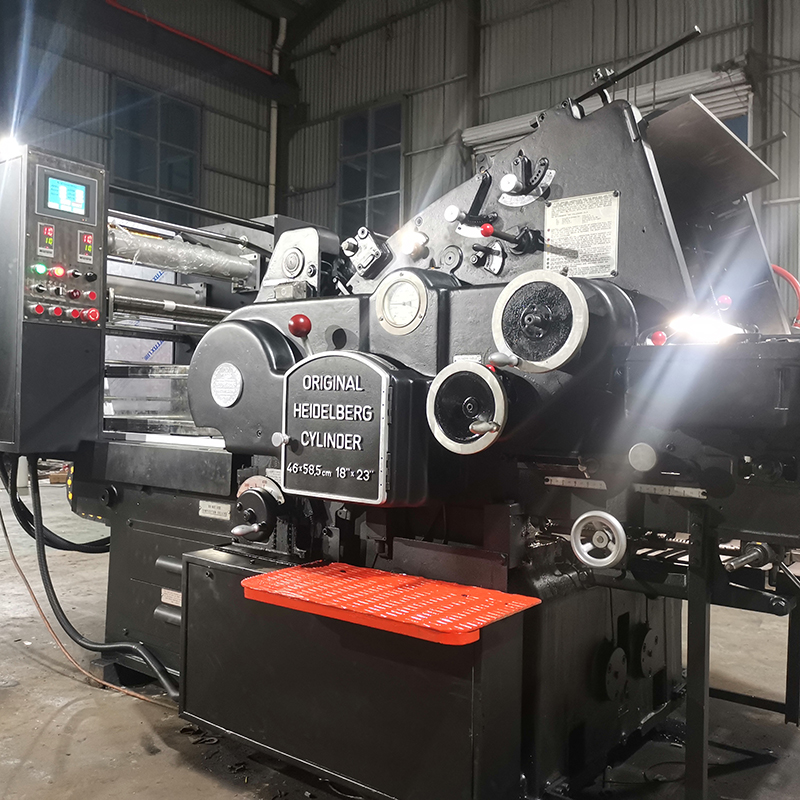

585Fully automatic round flattening and hot stamping machine

The full-automatic cylinder flat hot stamping machine is a crucial piece of equipment in the printing and packaging industry. It adopts advanced automation technology to achieve efficient and precise hot stamping processes. Its unique cylinder flat structure design makes the hot stamping process more stable, with the pressure evenly distributed, ensuring clear and exquisite stamping effects.The fully automatic cylindrical flat hot stamping machine uses high temperature and high pressure to transfer the electrochemical aluminum.

    This device features a high degree of automated operation. From paper feeding and positioning to the completion of the hot stamping process, it can operate automatically and smoothly, greatly improving production efficiency. Moreover, it can adapt to various types of paper and hot stamping materials, such as ordinary cardboard, coated paper, and various foils, meeting diverse production needs. In addition, the machine is equipped with an intelligent control system, which can accurately set parameters such as hot stamping temperature, pressure, and speed to ensure the stability and consistency of product quality. Whether it is used for the production of commercial greeting cards, packaging boxes, or labels, the full-automatic cylinder flat hot stamping machine can perform tasks excellently.Fully automatic cylindrical flat hot stamping machines usually use advanced sensors and control systems that can accurately detect the position and posture of the paper, realize automatic paper feeding and precise positioning. For example, photoelectric sensors detect the edge of the paper or specific marks, automatically adjust the paper feeding speed and position, and ensure that each piece of paper can accurately enter the hot stamping station. During the hot stamping process, the machine can automatically complete the hot stamping operation according to the preset program without frequent manual intervention. Some high-end models also have an automatic plate changing function. When the hot stamping pattern or text needs to be changed, the machine can automatically complete the replacement and adjustment of the plate roller, further improving production efficiency.

    Technical Data

    Max paper size 460mm×585mm
    Min paper size 140mm×180mm
    Max stamping size 460mm×585mm
    Gripper margin 6-8mm
    Stock range 50-350g/㎡
    Cylinder-packing thickness 1.2mm
    Max foil stamping speed 2500
    Foil stamping precision ±0.2mm
    Heating zones 3 Three
    Temperature adjustable range 30-200℃
    Max pile height at feeder 325mm
    Machine weight 3   3tons
    Main motor power 5KW
    Heating plate power 5KW
    Dimension 3000×1600×1700mm

    Electrical configuration table

    1 (PLC) INOVANCE
    2 (HMI) INOVANCE
    3 (VFD) INOVANCE
    4 (Servo) INOVANCE

    Accessories

    Hex key 1set
    Flat-head screwdriver 1pc
    Phillips screwdriver 1pc
    Scraper  2 pcs (1 large, 1 small)
    Scissors 1pc
    Steel ruler (300mm) – 1 pc
    Retaining ring  30 pcs
    Spring  20 pcs
    Foil feed roller 4 pcs
    Open-end wrench set  (8-24mm) – 1 set
    Adjustable wrench (0-300mm) – 1 pc
    High-temperature adhesive 4 tubes
    Roller blanket steel sheet  1 pc
    Hot stamping aluminum plate 2 pcs
