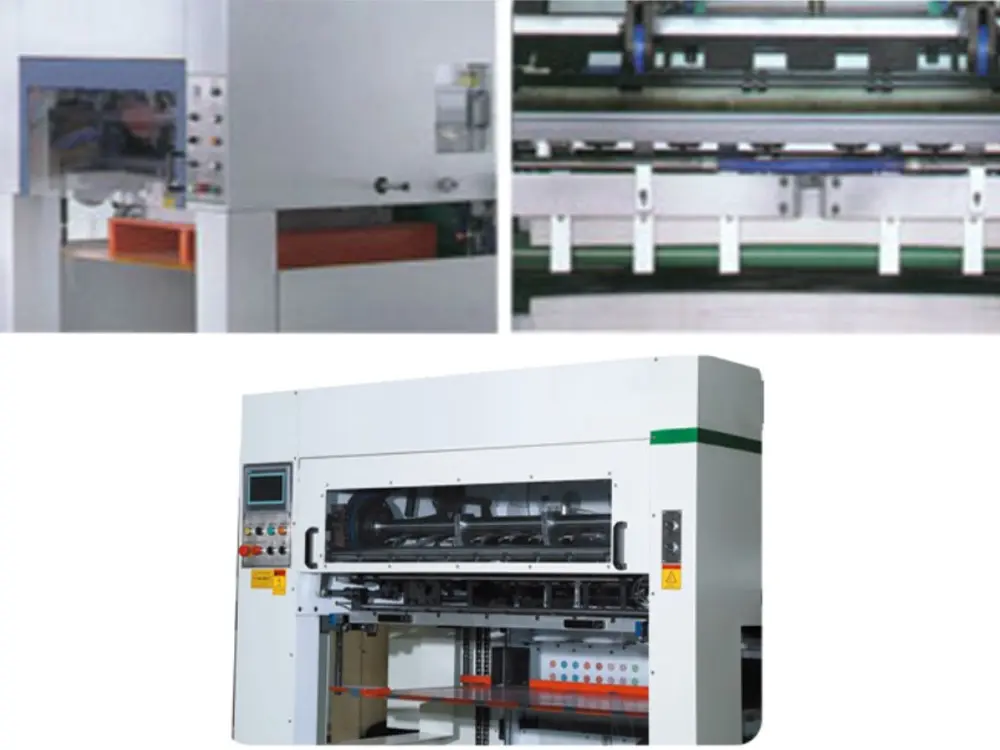

1060 Automatic Three Vertical Deep Embossing Hot Stamping
Variable frequency heating system

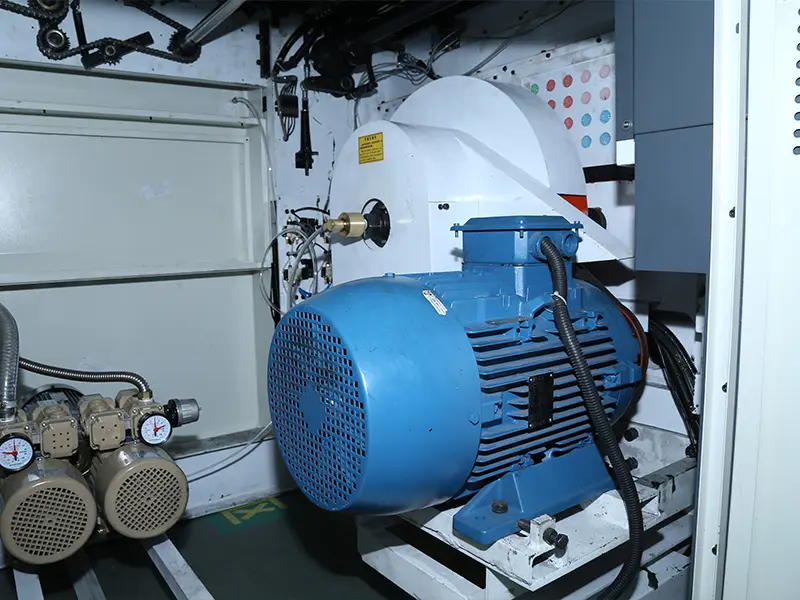

Motor

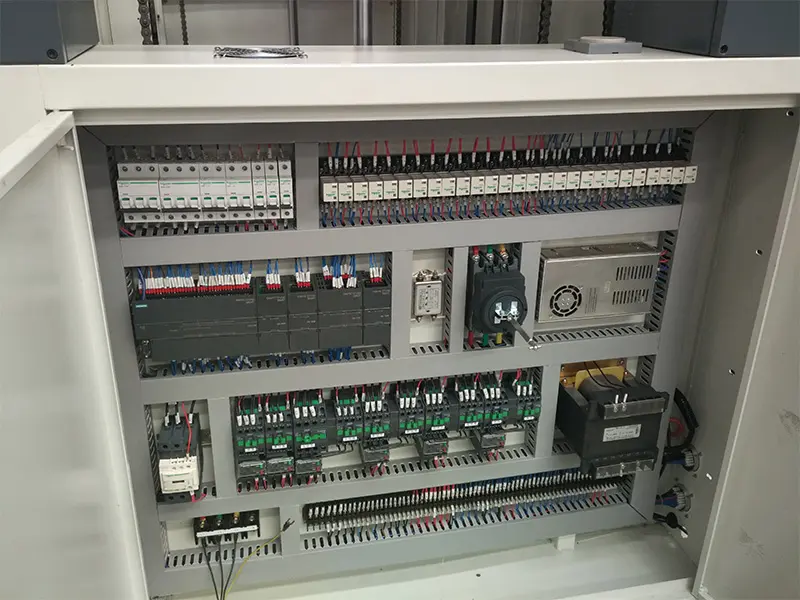

Electrical box

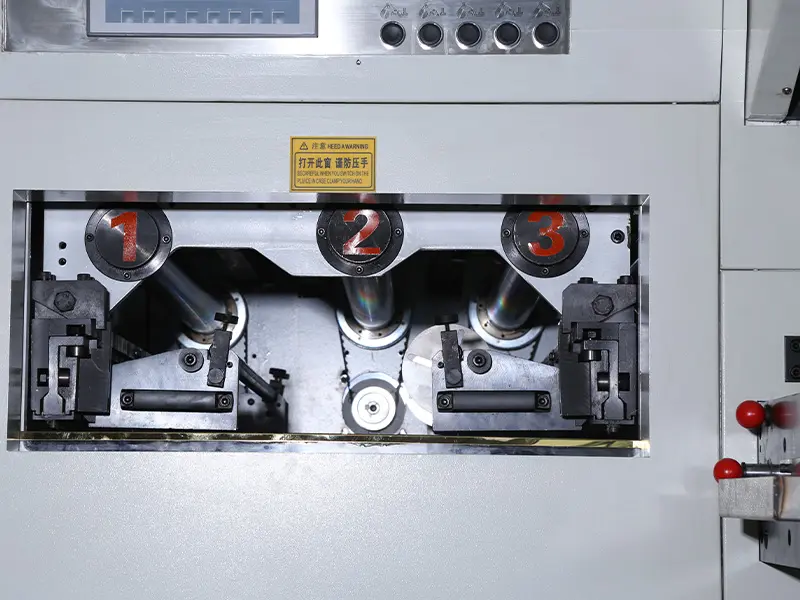

Foil placement rack quick foil changing device

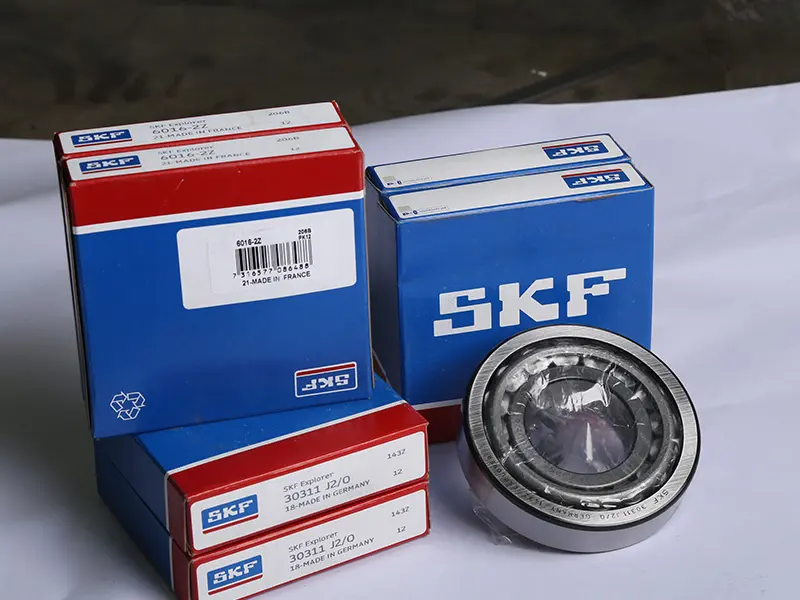

Imported SKF bearings

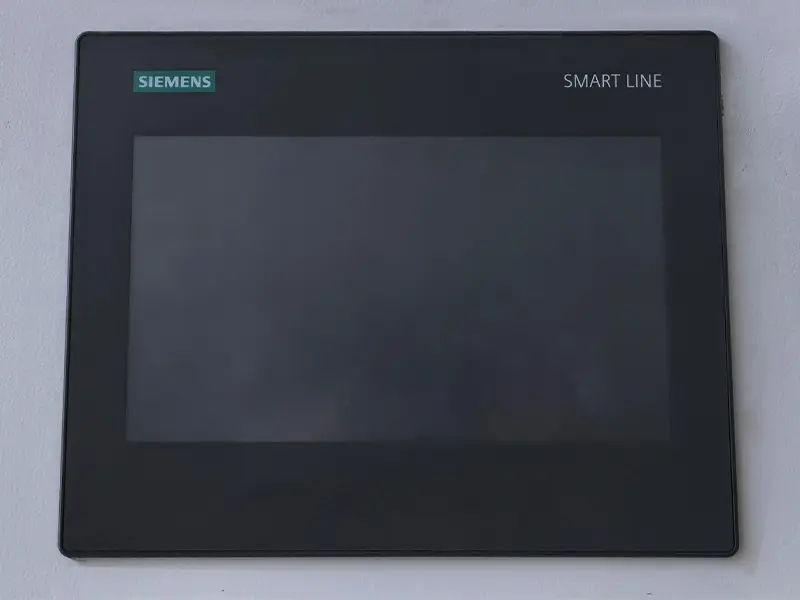

Human-machine interface

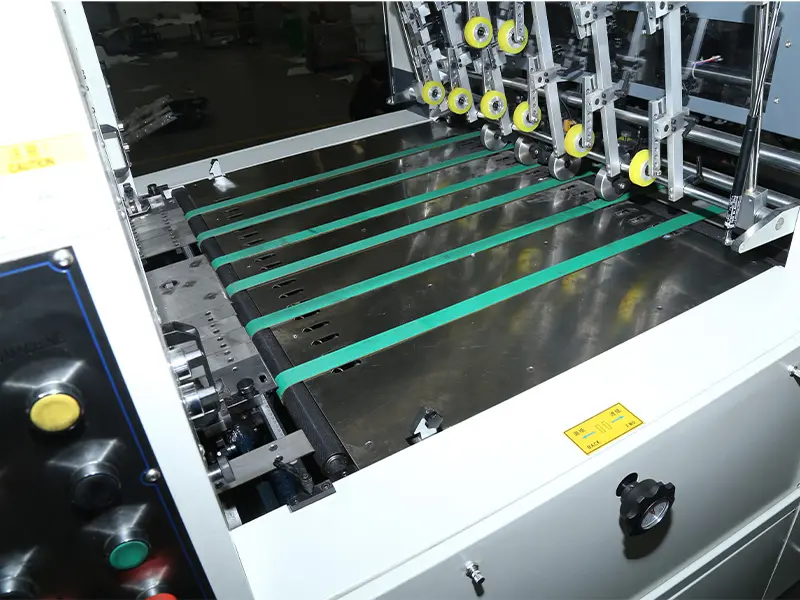

Paper feeding section

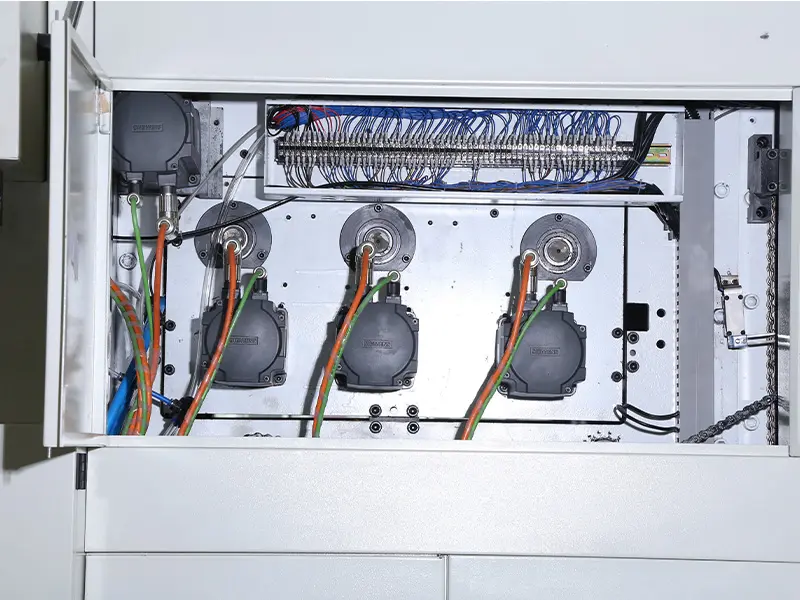

Siemens servo

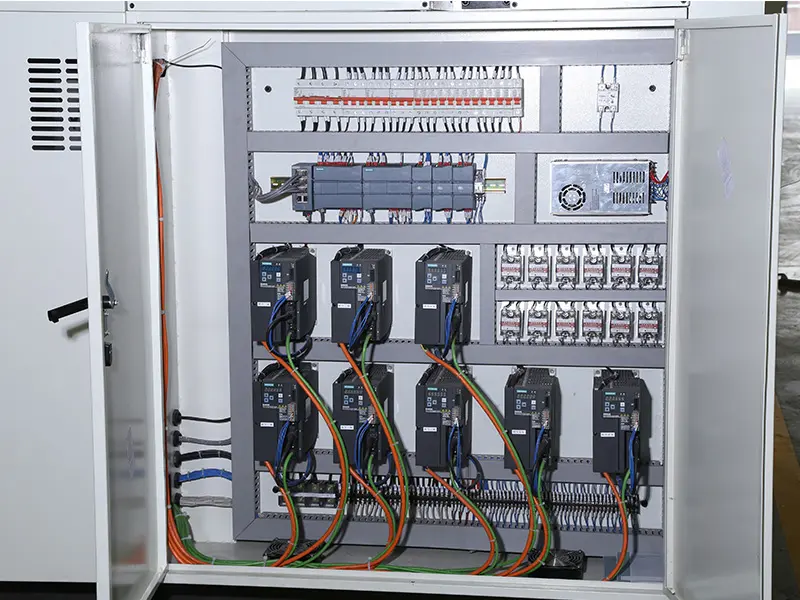

Siemens servo controller

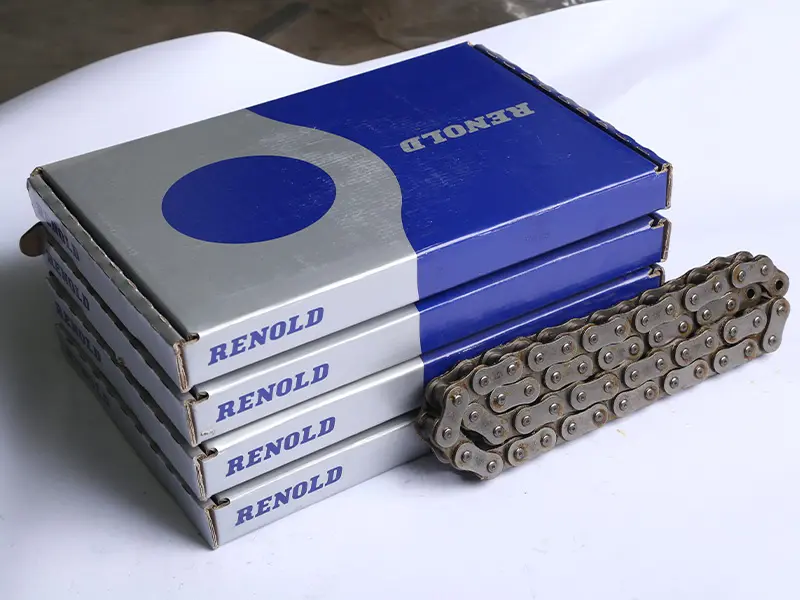

British Renode chain

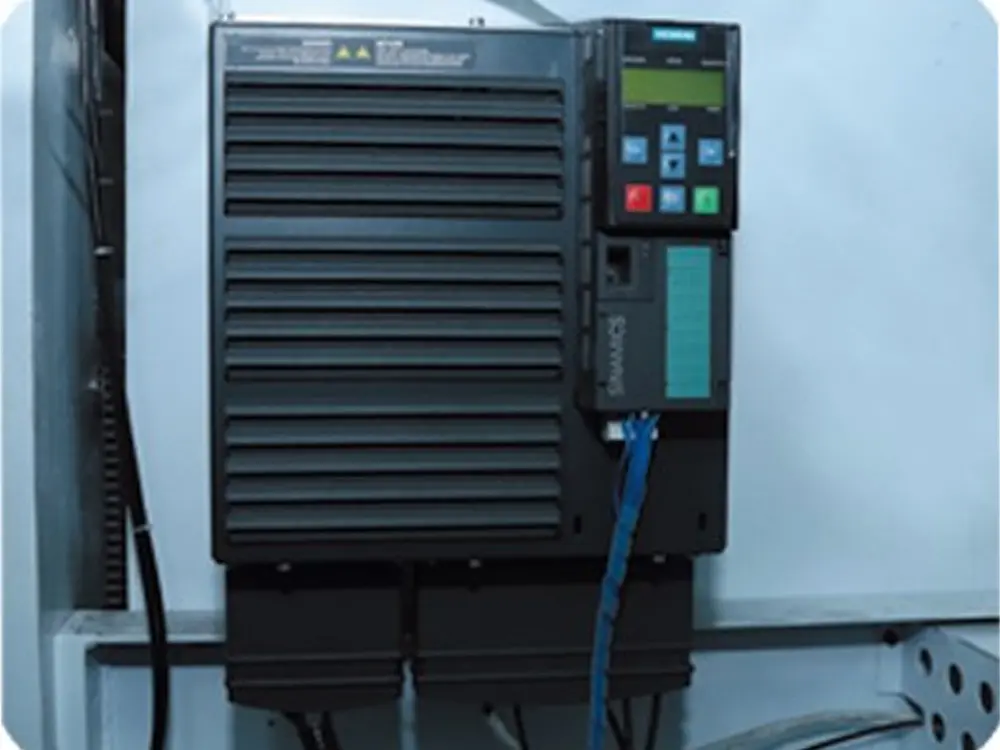

Main motor frequency converter

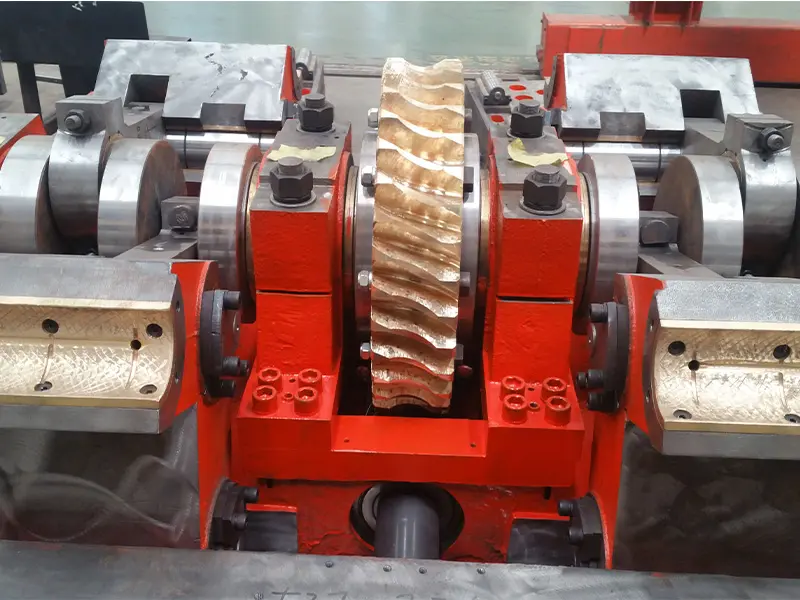

Main engine turbine
Feeding unit
|
No. |
Name of Part |
Foto |
|
1 |

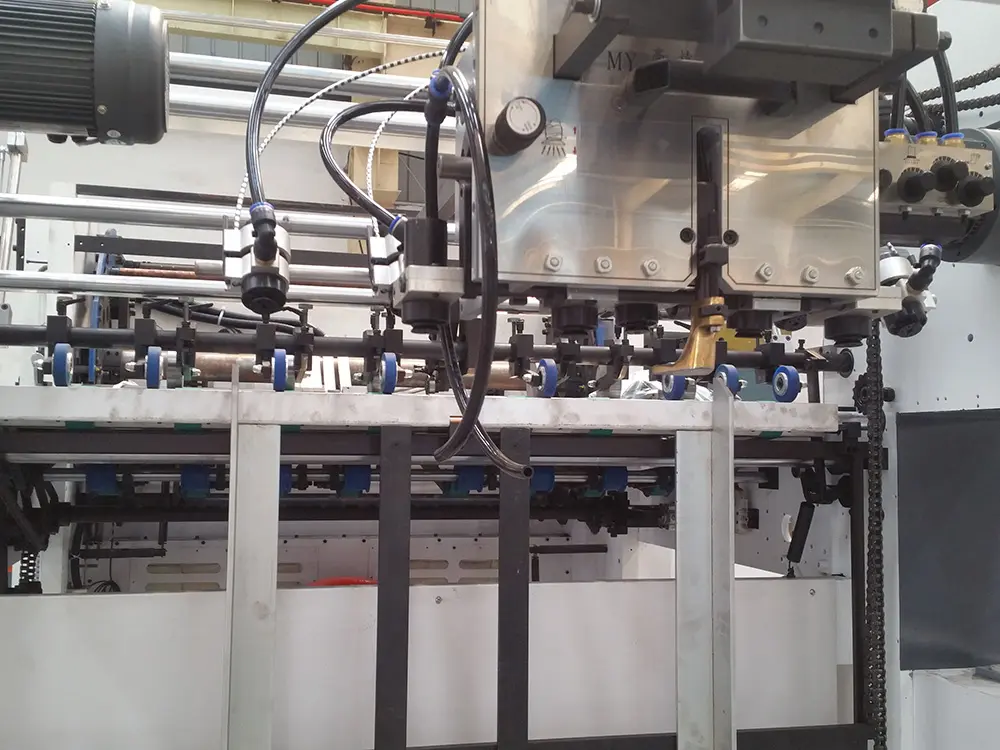

Feeder: The feeder is equipped with European technology, four suction cups and four blowers. The suction cups are flexibly adjustable to ensure smooth conveying of different types and shapes of paper without stopping the machine, and their easy adjustment enables precise conveying of thin paper. |
|
|
2 |
Blowers for thin paper feeding |
|
|
3 |
Separate blowing unit on transport bracket |
|
|
4 |

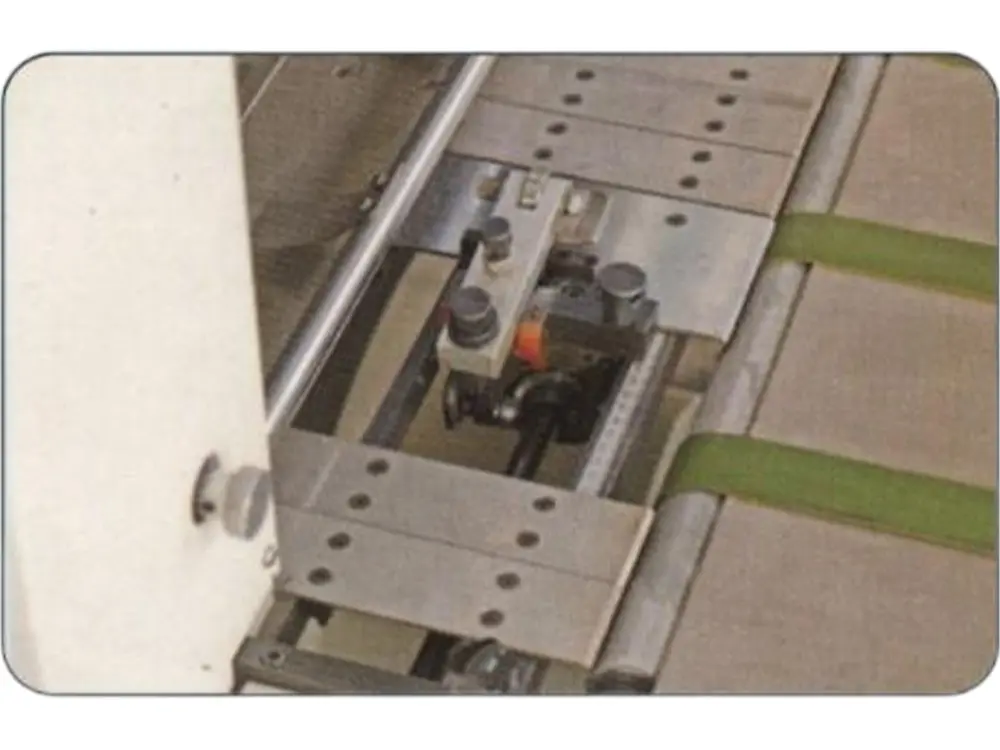

Side Lay: unique design with push-pull function. It can be adapted to different product characteristics and does not require replacement of parts. Low paper movement during operation, no risk of wear and tear, helping to realize high-speed paper transport. |
|
|
5 |

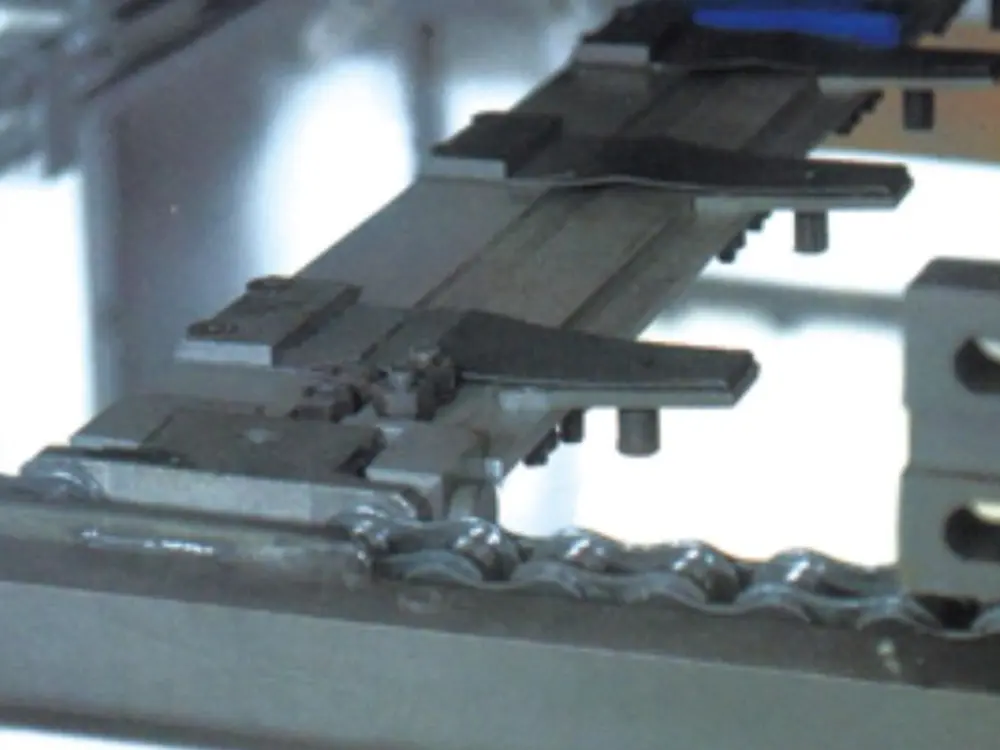

Gripper bar and Chain: The clamping bar is made of special super-hard aluminum alloy with anodized surface, which can realize accurate die-cutting and precise control of accuracy during adjustment; the main chain of the clamping bar is made of special chain, which improves the strength by about 45%, enhancing the stability of accuracy and prolonging the service life at the same time. |
 |
Main Transmission
|
No. |
Name of Part |
Foto |
|
|
1 |

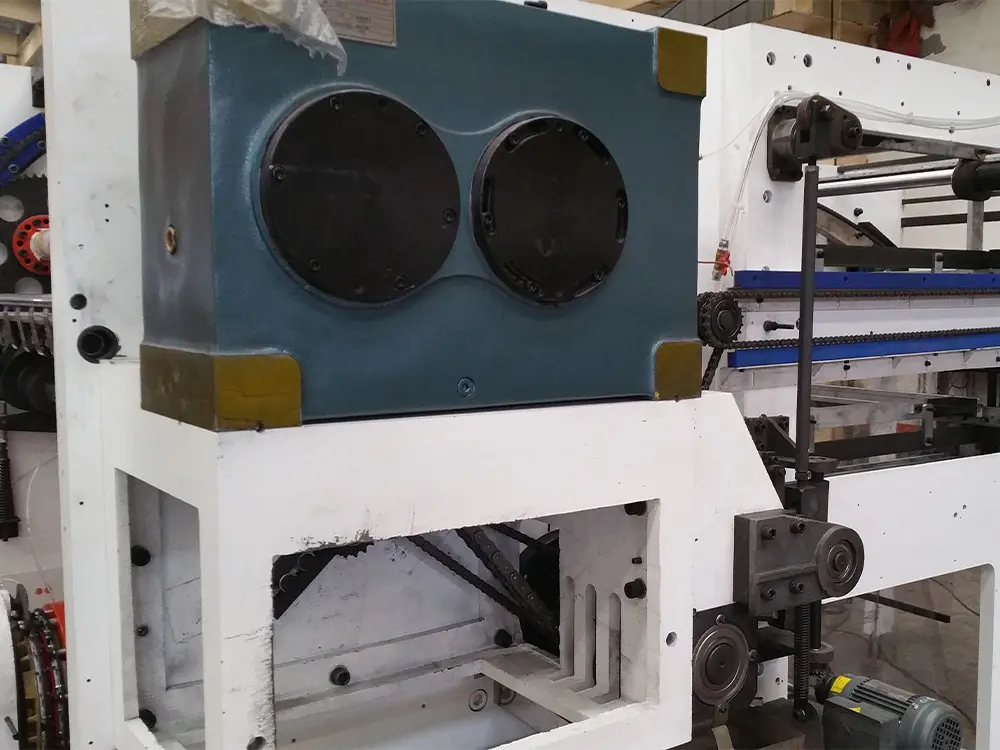

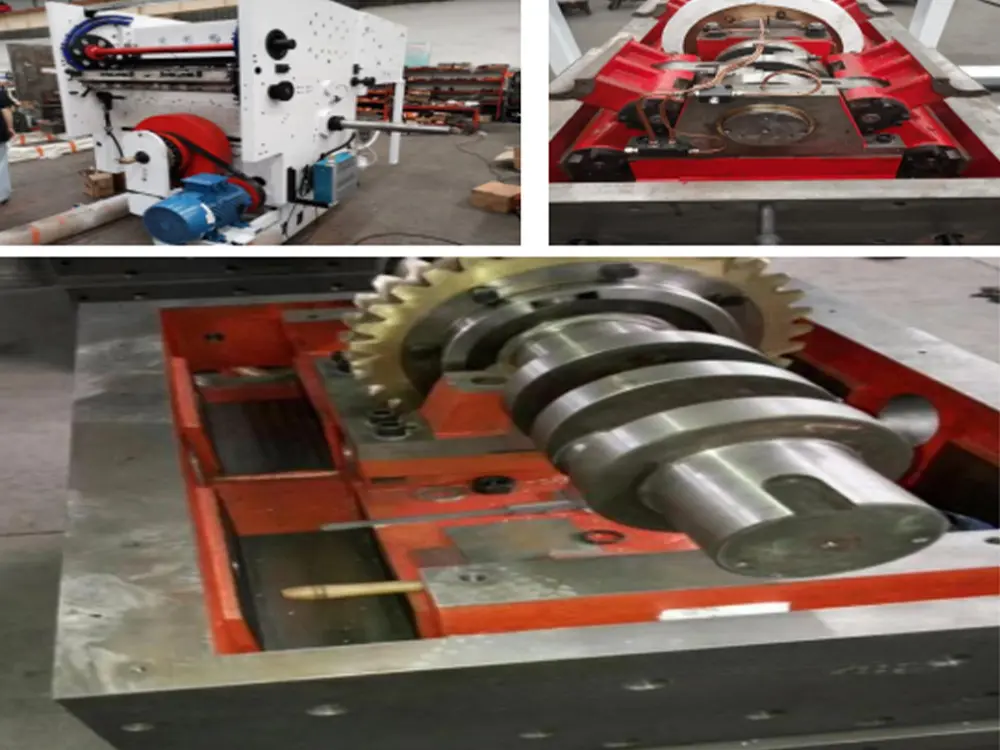

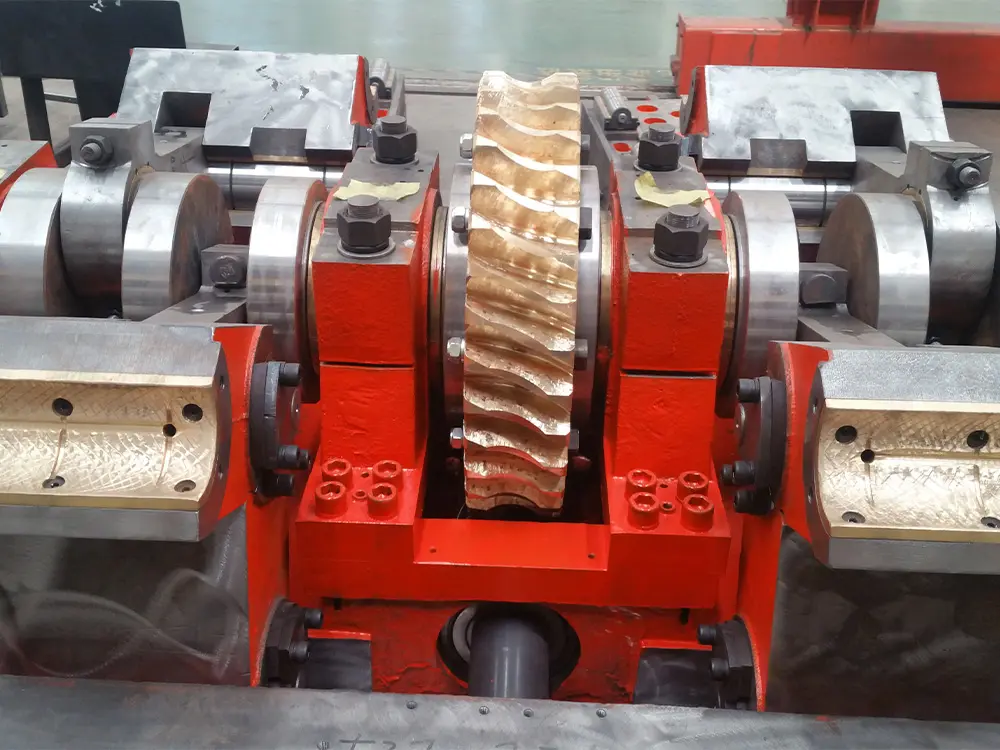

Main Transmission:excellent performance of core components: the worm shaft is made of German alloy copper, precision machined for high precision and wear resistance; the curved shaft and worm are forged and ground combined with high-temperature quenching process, which greatly improves the service life; the pendulum rod is enlarged and thickened, which significantly strengthens the stamping strength and has excellent wear resistance. |
|
|
|
2 |

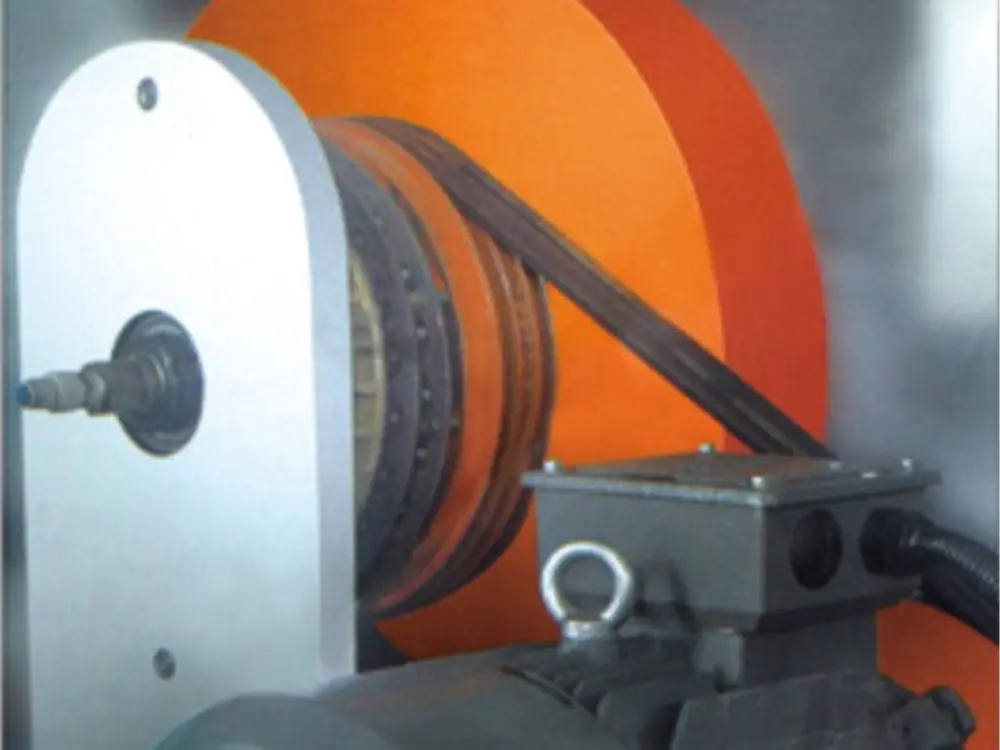

Pneumatic clutch: adopting imported parts, effectively reducing noise and pneumatic impact, stable and safe operation, in line with European export standards. Equipped with Italian yuyi clutch, better performance. |
|
|
|
3 |
Main Chain drive:the host chain is made by Reynolds, Germany, with Taiwan intermittent mechanism drive, significantly enhance the die-cutting precision, to ensure the safe operation of the equipment, effectively reduce the risk of damage to the machine, and significantly extend the service life of the equipment. |
|
|
|
4 |

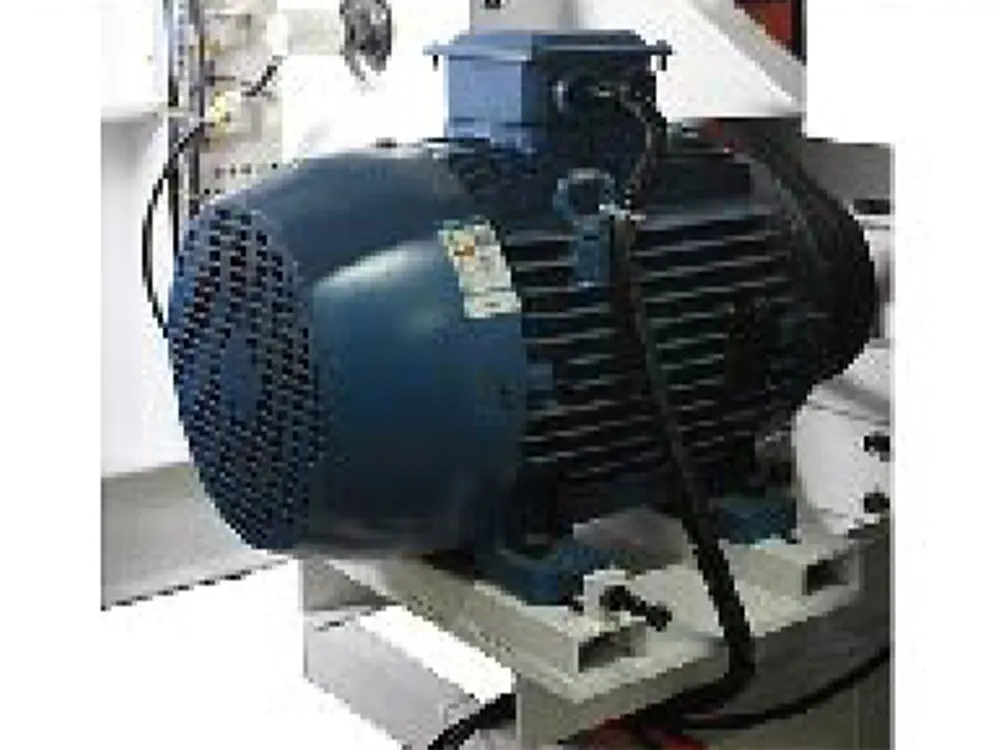

Brazil WEG explosion-proof |
|
|
|
5 |

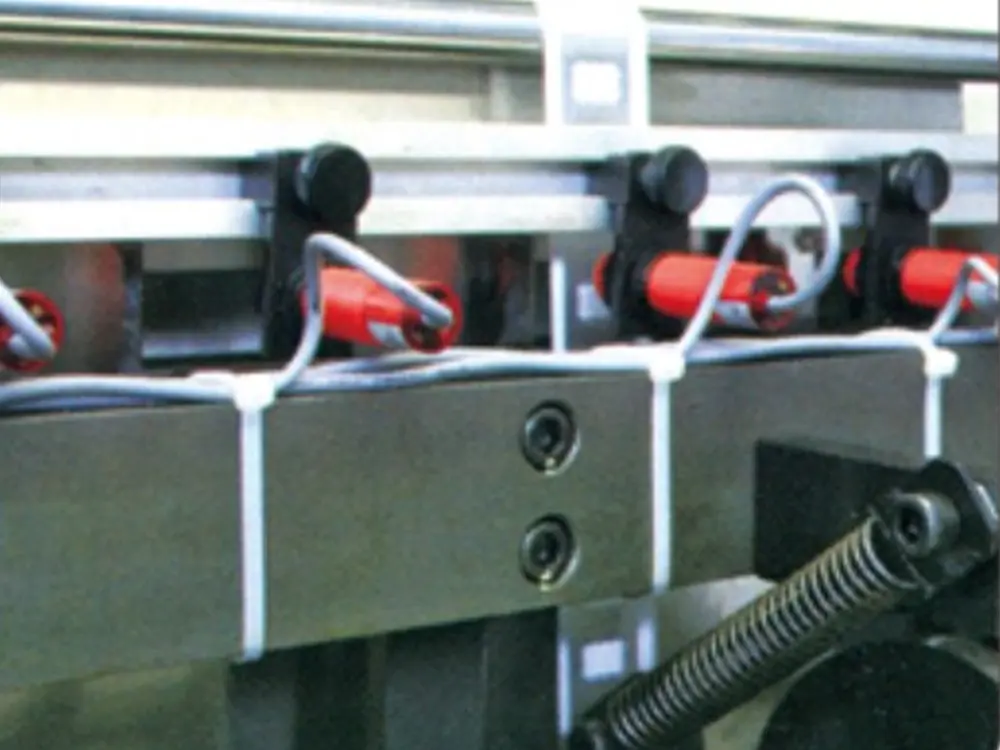

Siemens Sensor |
 |
|
Die-cutting part
|
No. |
Name of Part |
Foto |
|
1 |

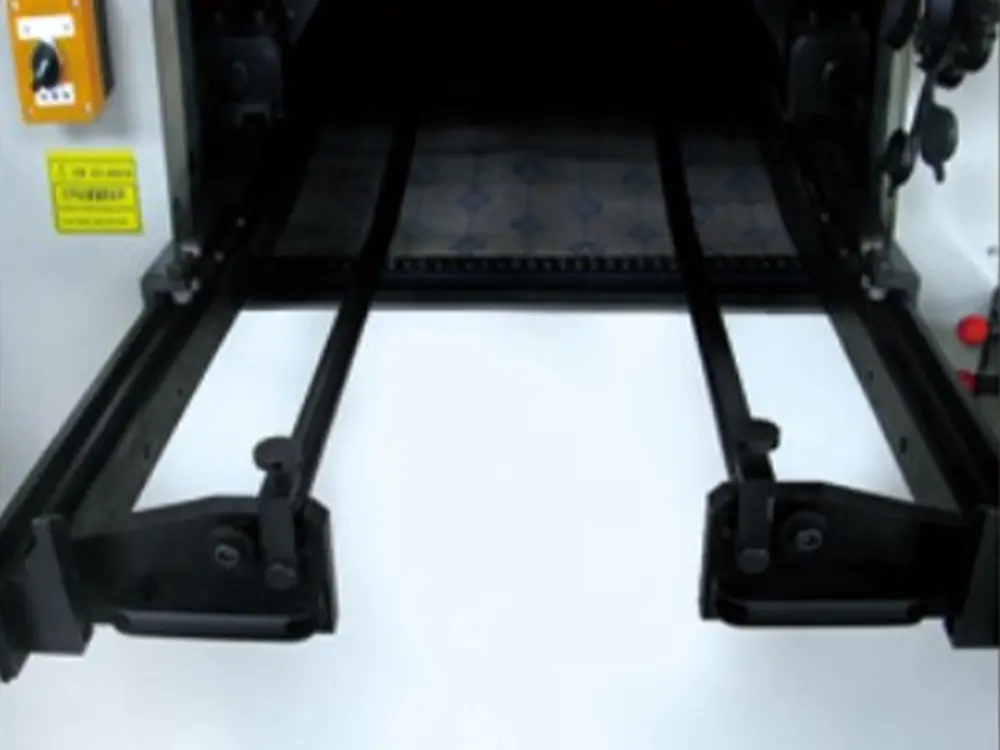

Die-cutting part: die-cutting base plate and knife template safety design, with easy transfer device, efficient and convenient to load and adjust the plate. Equipped with pneumatic stabilized reset mechanism and non-stop paper feeding and collecting device. |
|
|
2 |

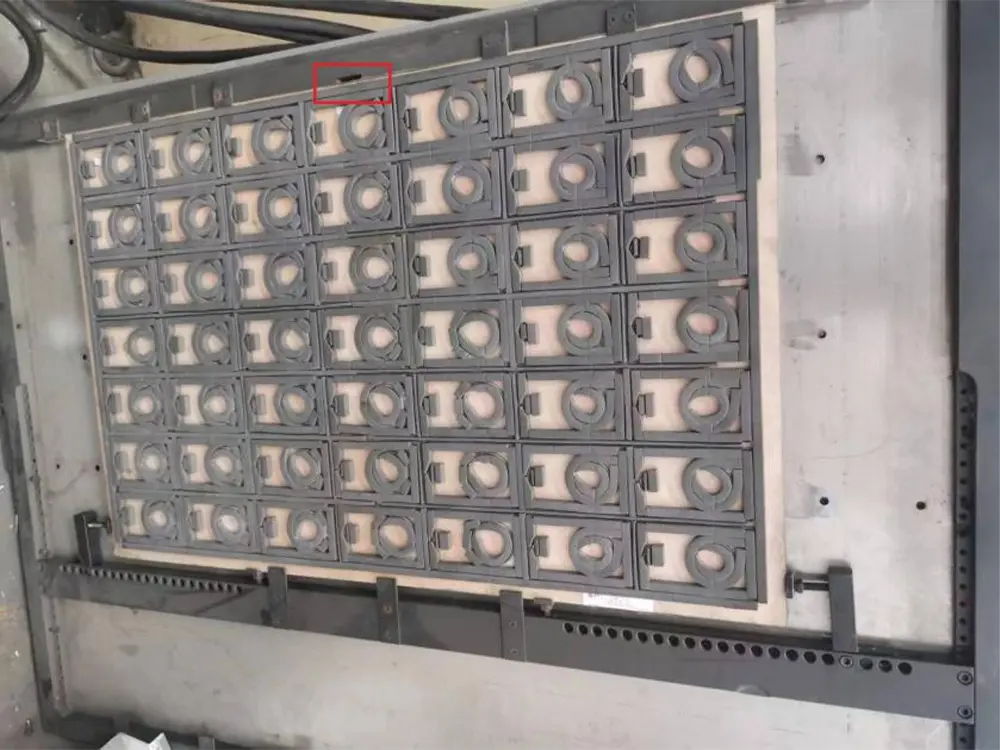

Positioned in the center axis, the blade is fixed by screw clamps and fastened by claw screws. |
|
|
3 |
Paper beautifying device in die-cutting |
|
|
4 |

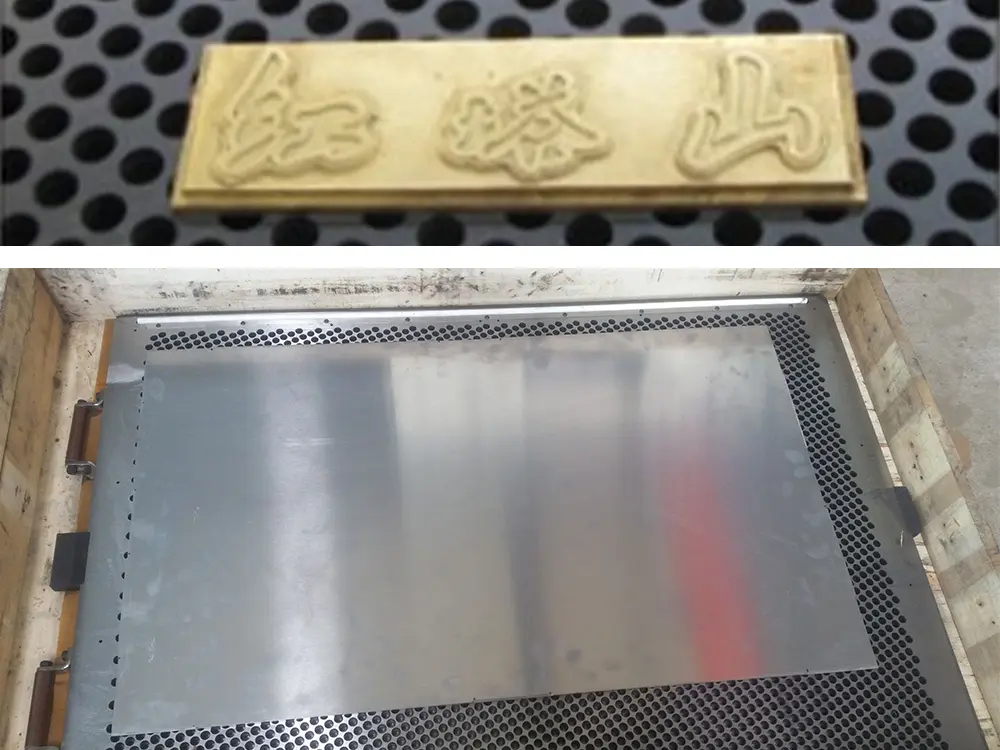

HONEYCOMB CHASE:made of high temperature resistant steel with excellent dimensional stability. It is adapted to standard flip hook mounting for precise positioning of stamping dies. The track is equipped with double Teflon rollers, which can separate the foil from the track and protect the foil from damage under high temperature working conditions. |
|
|
5 |
Flexible Foil Unwinding Rack: flexible design, flexible body, easy and safe to operate; with tension adjustment function to ensure smooth and accurate foil roll transportation and guarantee the stamping accuracy. |
|
|
6 |

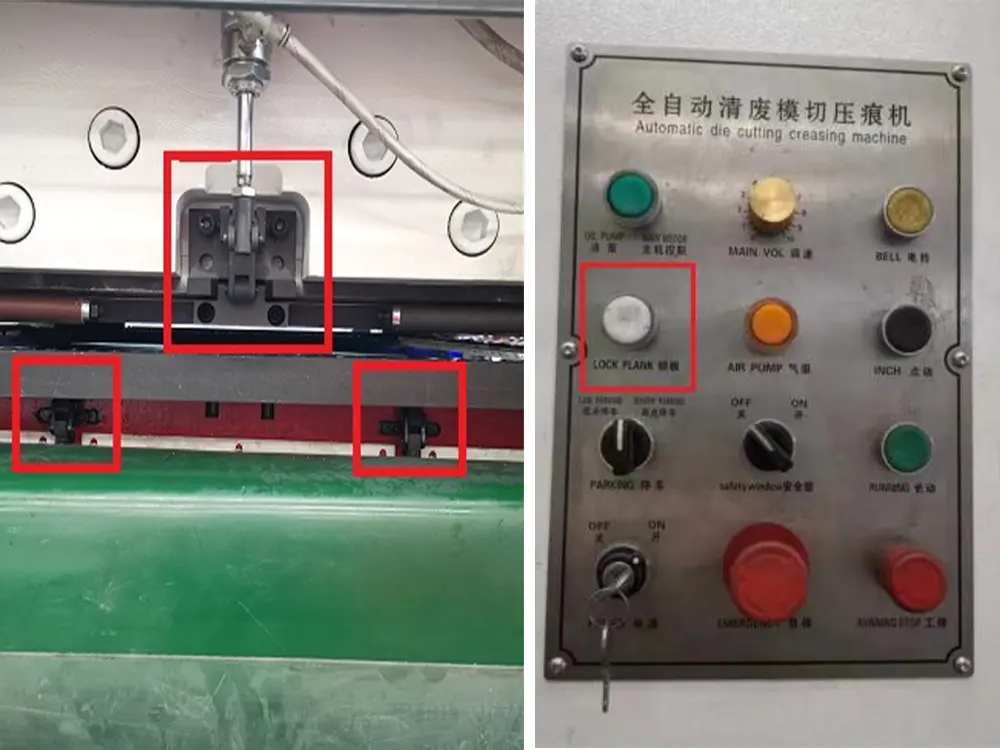

The locking plate is equipped with fast automatic locking device; the lower locking plate is also equipped with fast locking structure. One-touch button control, light off to lock, light on to release, without tools to quickly complete the locking operation, significantly shorten the debugging time. |
|
|
7 |

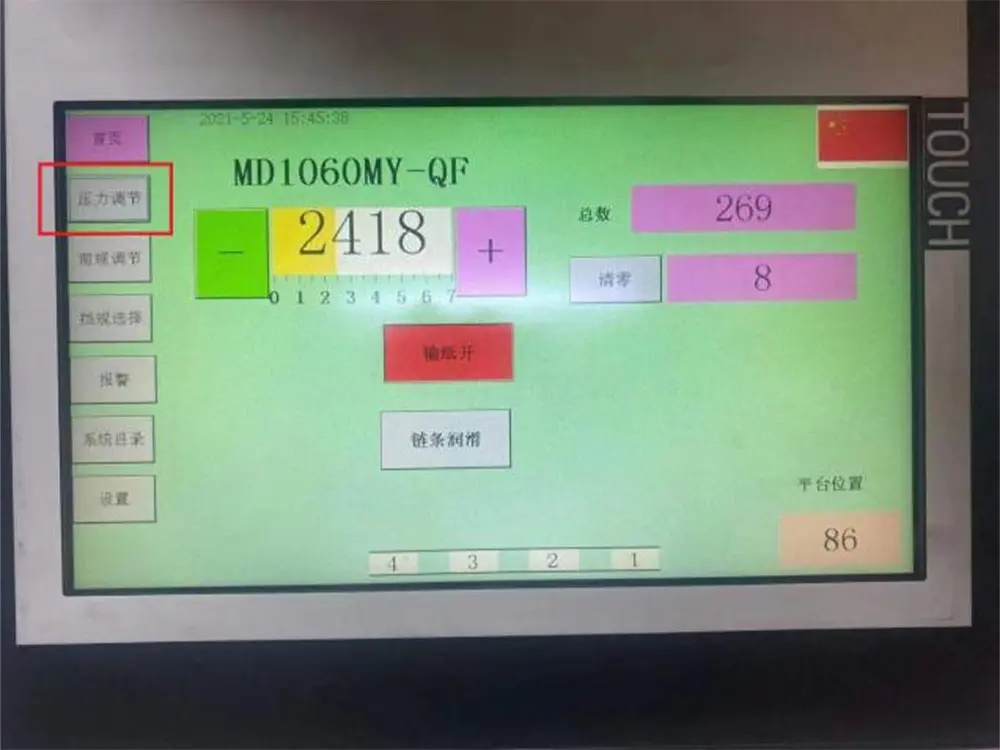

Pressure adjustment through the screen to realize the motorized pressure increase and decrease; man-machine interface supports dual control of the receiving end and the operating end, and can complete all the operations of the machine. |
 |
Delivery section
|
No. |
Name of Part |
Foto |
|
1 |

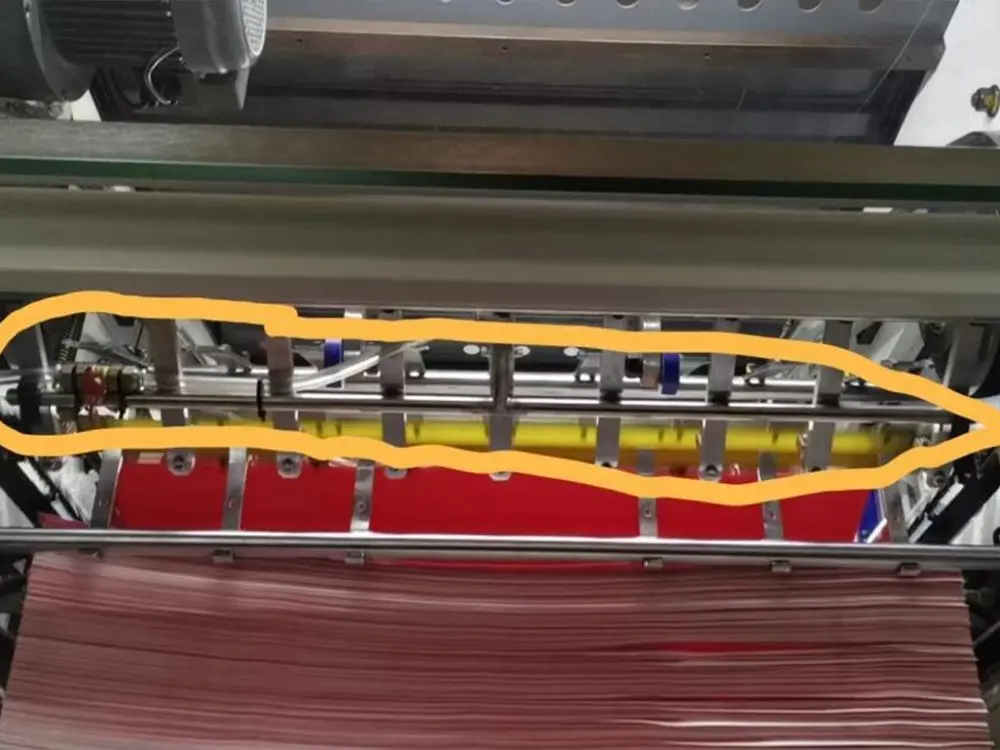

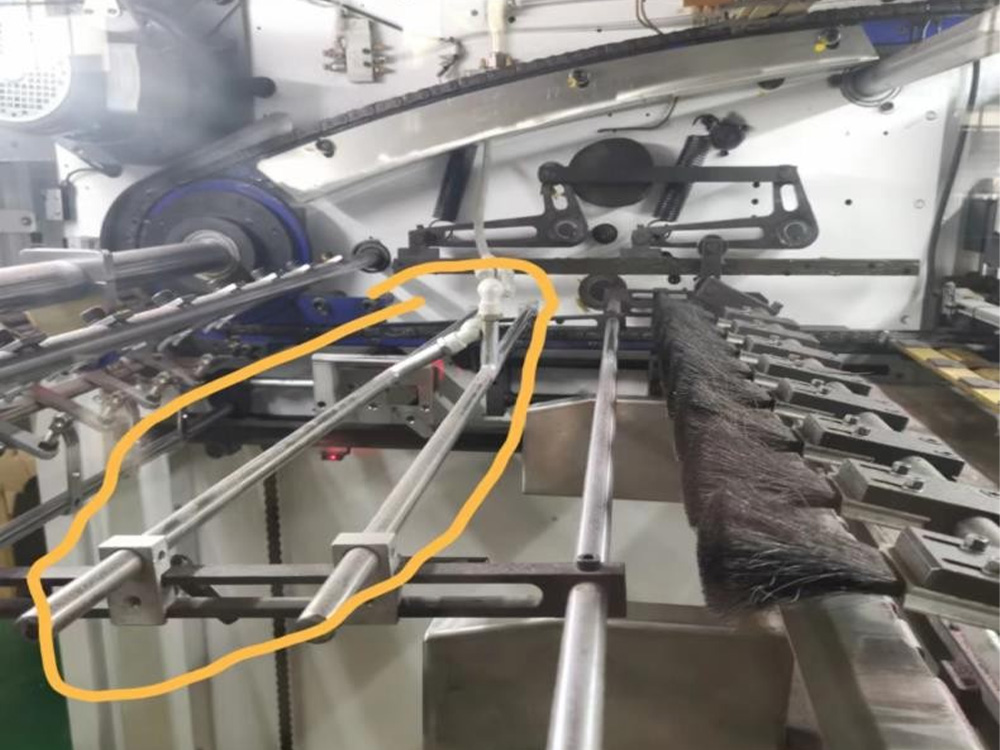

Delivery section: the use of mechanical paper feeding pressure brush mechanism, so that the paper plane locking device fixed on the frame more firmly and accurately, saving time, more secure, more reliable |  |
Host structure of equipment
|
No. |
Name of Part |
Foto |
|
1 |
Host structure of equipment |
 |
Electrical part
|
No. |
Name of Part |
Foto |
|
1 |

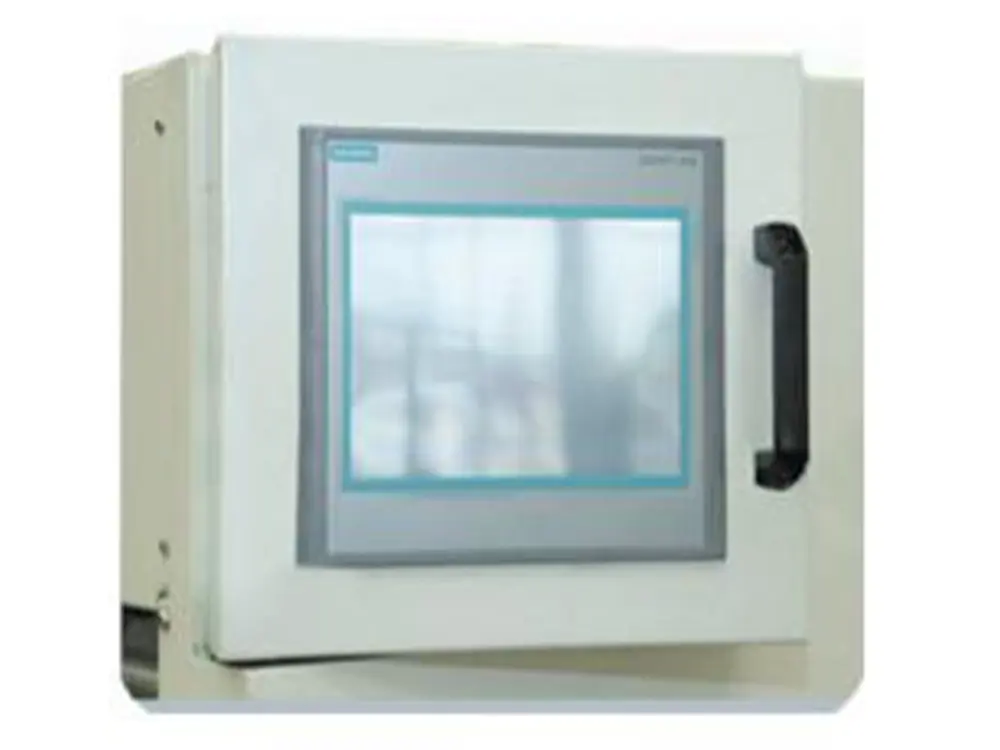

Man-machine interface: Equipped with imported high-resolution human-computer interaction system, realizing real-time status monitoring and display, and at the same time providing guidelines for machine debugging and troubleshooting. |
|
|
2 |

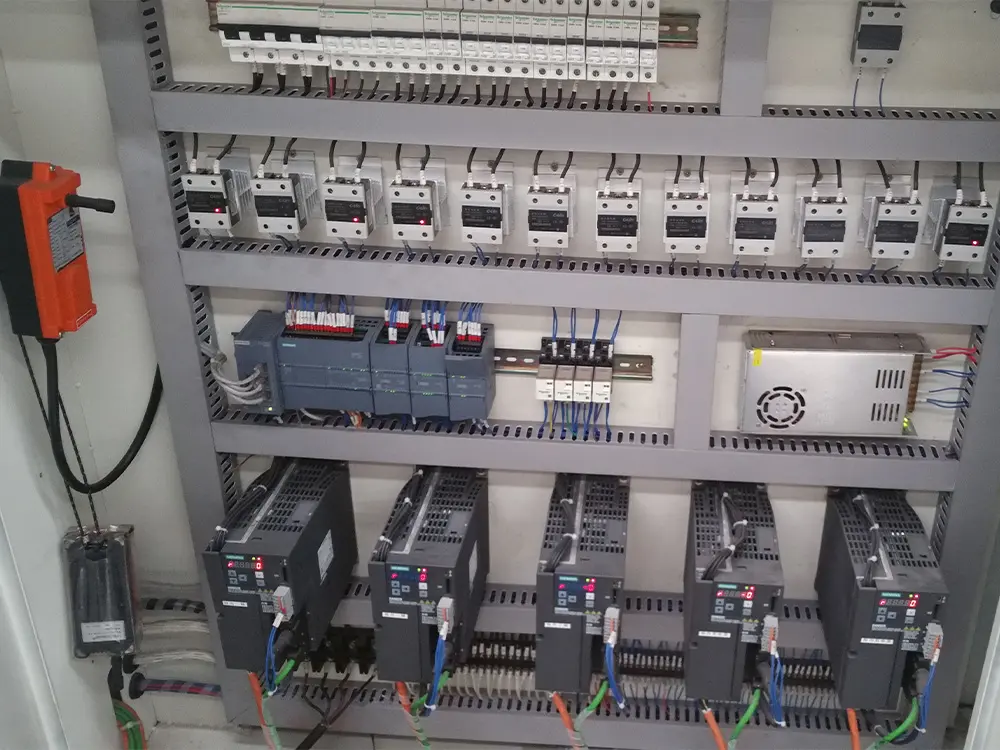

Electrical Unit: The machine utilizes Siemens PLC frequency conversion technology, and the key electrical components are selected from Japanese, French and Taiwan famous brand switches for precise control and reliable performance. |
|
|
3 |

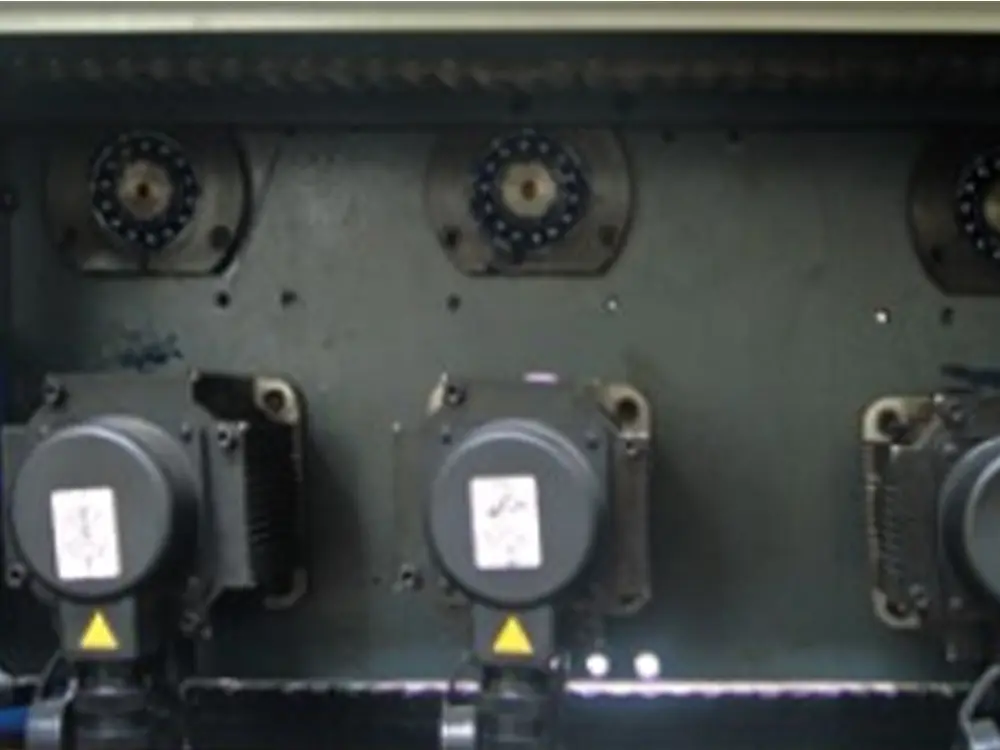

Foil Unwinding Motor System:Equipped with Siemens motor, servo system and program controller, it responds quickly and can accurately position the foil in high-speed operation. |
|
|
4 |

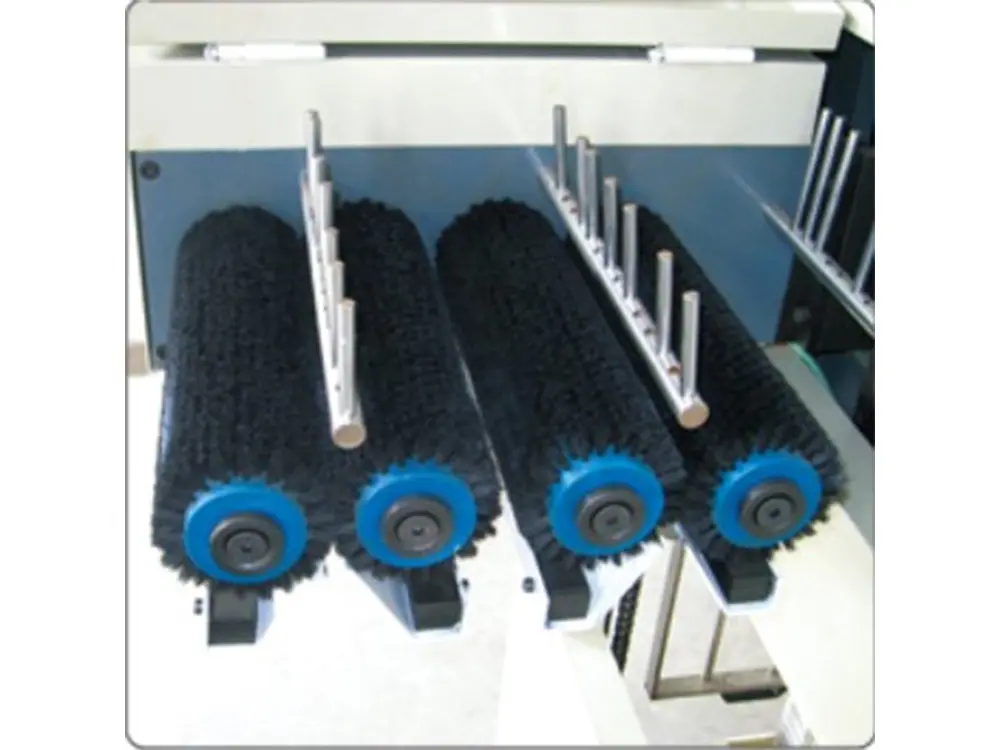

Waste Foil Collecting Brush Wheel Unit: Driven and controlled by Siemens servo motor, with adjustable rotational speed to match the stamping speed and maintain constant foil tension. |
|
|
5 |
Foil Breaking Supervision System: with high sensitivity and reliability, it effectively reduces the production loss caused by foil breakage during stamping and ensures the continuity and stability of the stamping process. |
|
|
6 |
Torsion Limiter: with high sensitivity, it can effectively ensure the safe operation of the machine, minimize the personal injury of the personnel, and minimize the safety risks such as pinching and involvement of the personnel caused by the failure of the equipment. |
 |
Technical Data
| Maximum paper feeding size | 1060mm×760mm |
| Minimum paper feeding size | 420mm×350mm |
| Max die cutting size | 1050mm×750mm |
| Max stamping size | 1020mm×750mm |
| Gripper margin | ≥6mm |
| Inner chase size | 1120mm×786mm |
| Stock range | 80-2000g/m2 paper 0.1-2mm paper≤4mm corrugated |
| Die cutting accuracy | ≤±0.075mm(die cutting and stamping) |
| Max die cutting force | 600tons |
| Max die cutting speed | 5000p/h |
| Max feeder pile height | 1600mm（wooden pallet included） |
| Max delivery pile height | 1500（wooden pallet included） |
| Wide dimension of in longitudinal | 250mm |
| Stamping shaft number | Five shaft |
| Air requirement | 12 heating zones, 40-180℃ Adjustable |
| Net weight approx | About 18tons |
| Main motor wattage | 18.5KW |
| Full load wattage | 58KW |
| Overall dimension | 7500mm(L: Pre-load paper device included)×4000mm(W: Platform included)×2300mm(H) |
Electrical equipment layout
| PLC computer program controller | SIEMENS of Germany |
| Man-machine interface | SIEMENS of Germany |
| Principal machine transmission | anti-explosion OF Brazilian WEG |
| Contacts | SCHNEIDER |
| Optoelectronic switch | OMRON of JAPAN |
| Air switch | SCHNEIDER |
| Bearing | Swedish SKF |
| Transducer of main machine | SIEMENS of Germany |
| Reducing box | CPG of Taiwan |
| Main chain | RENORD of Germany |
| Intermittent mechanism | Taiwan |
| Server system | SIEMENS of Germany |
| Linear guide rail | HIWIN |
| Host protect | Torque protector |
| Temperature control system | SIEMENS of Germany |
| Oil supply system of main machine | WEILIANG of Taiwan |
