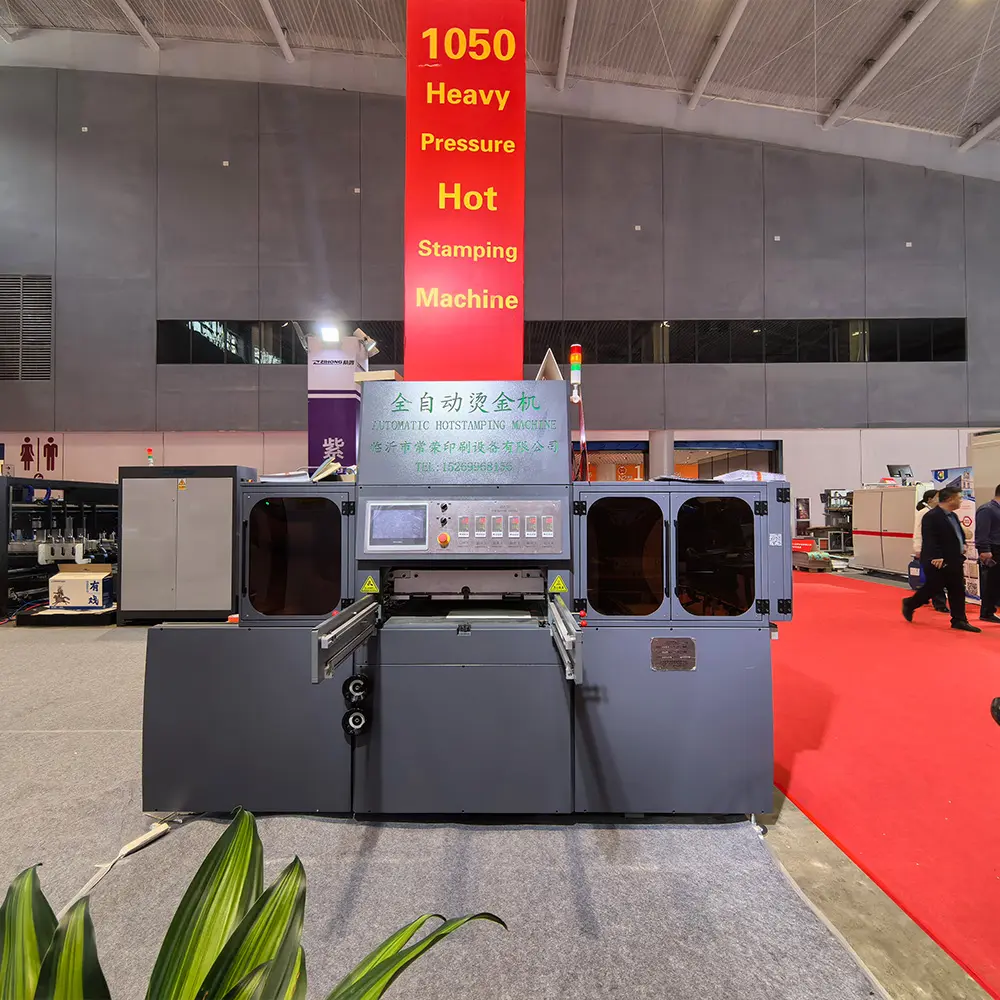

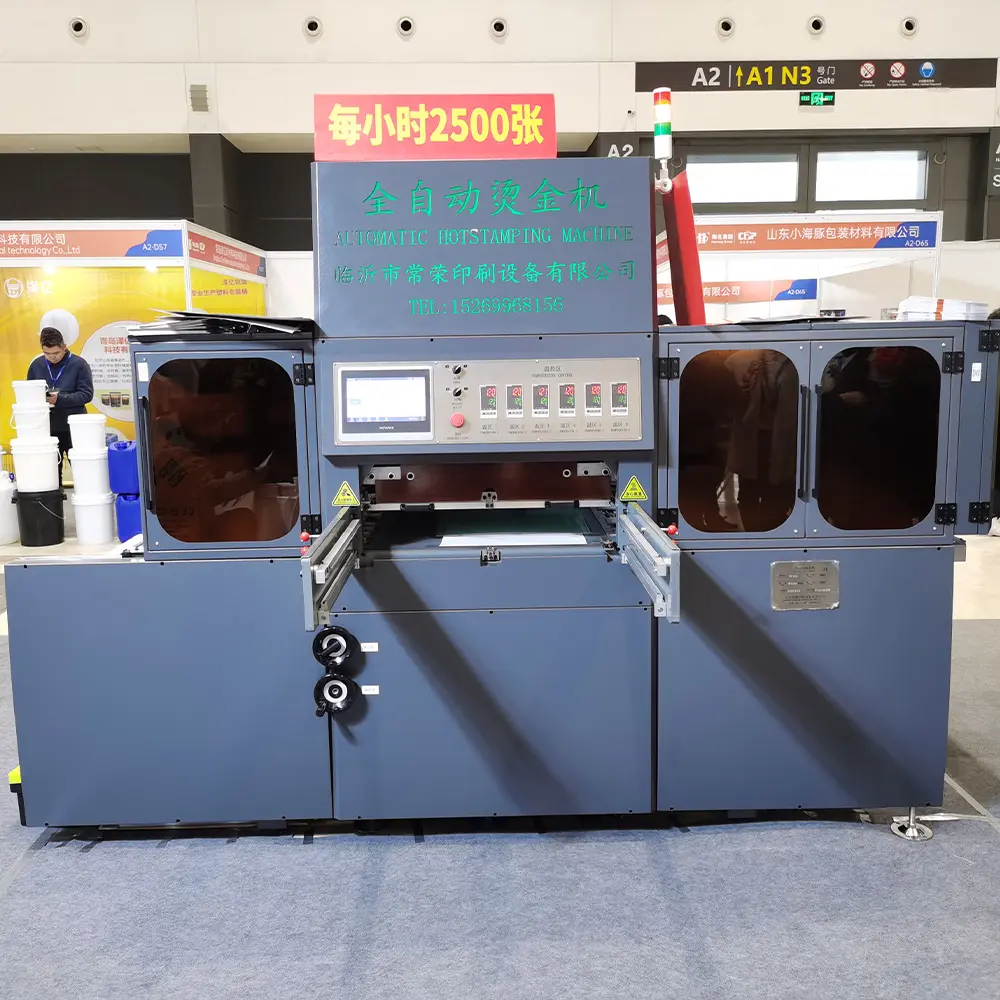

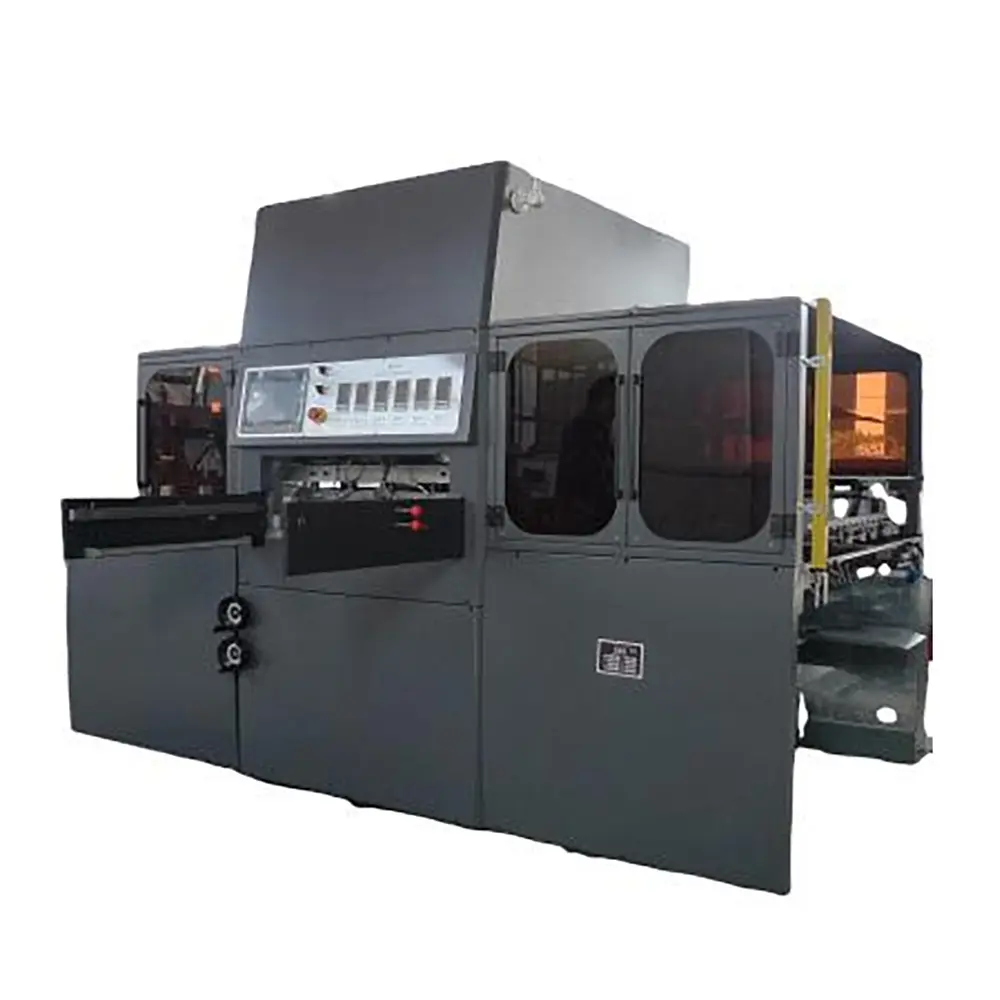

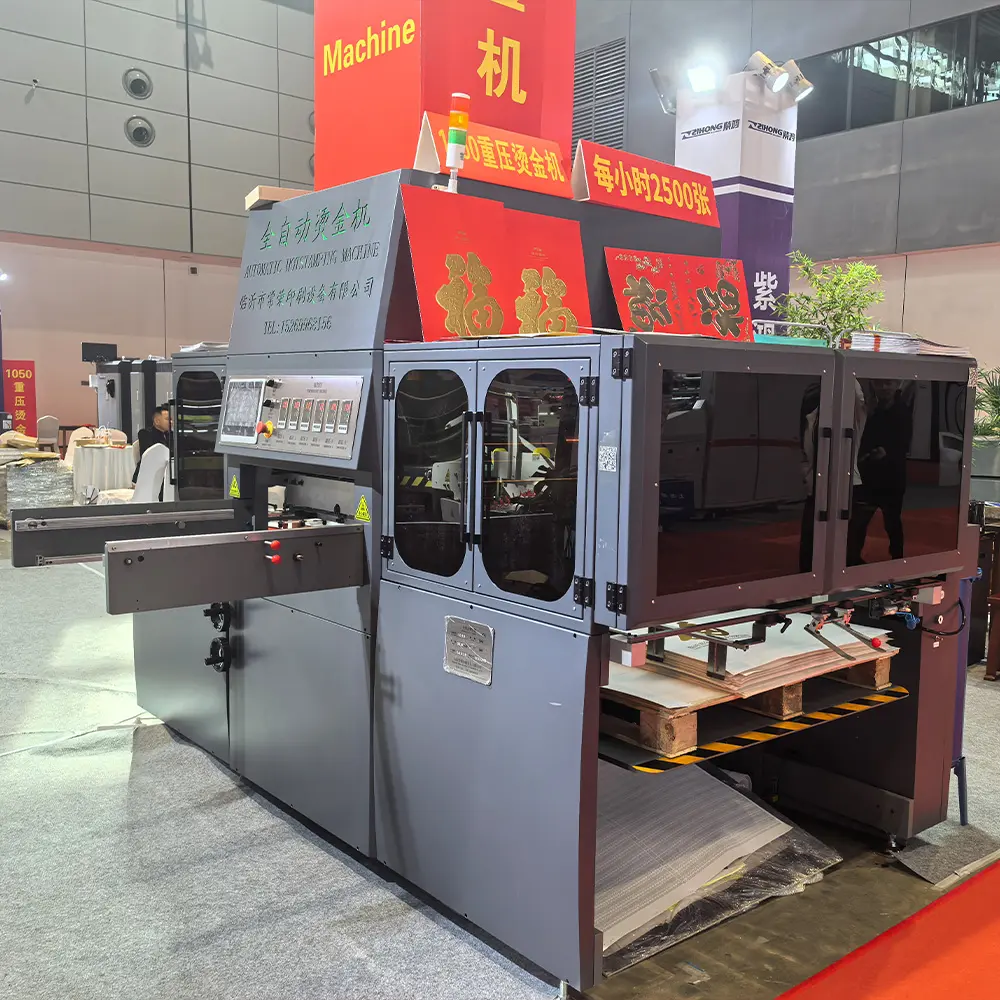

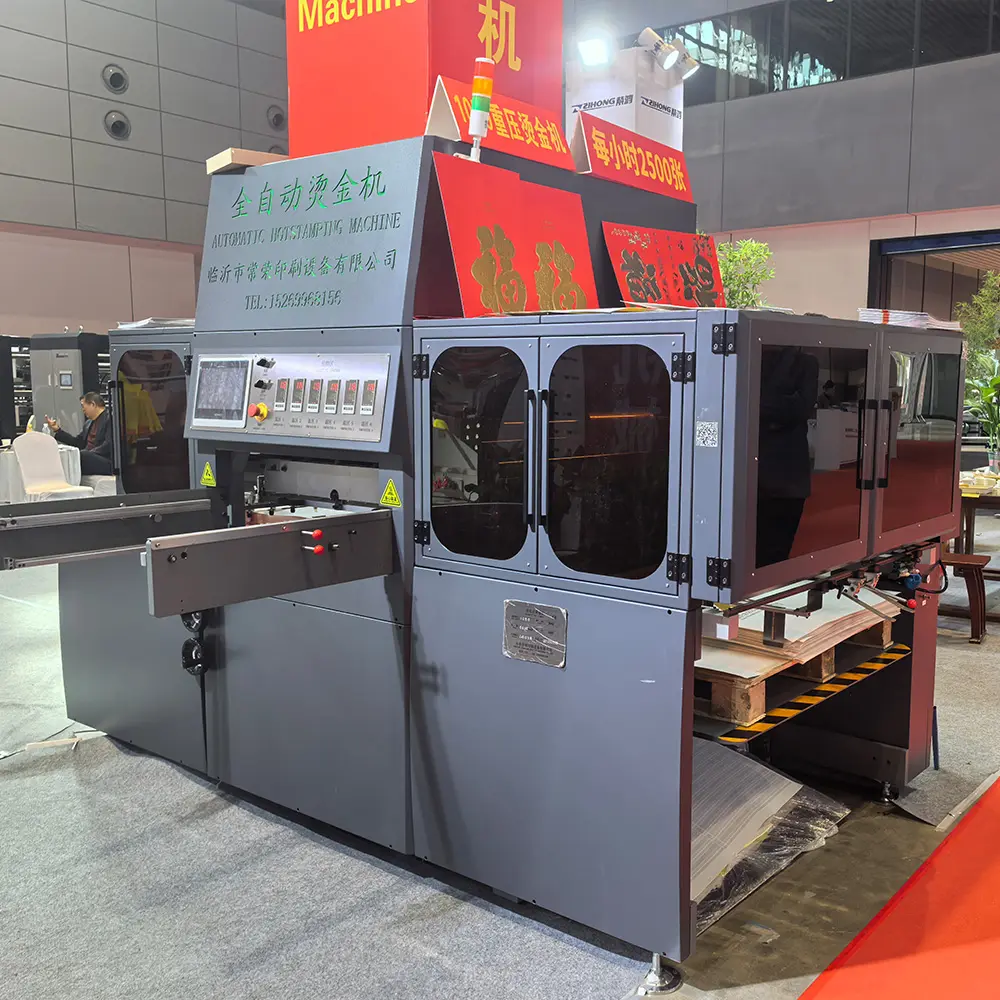

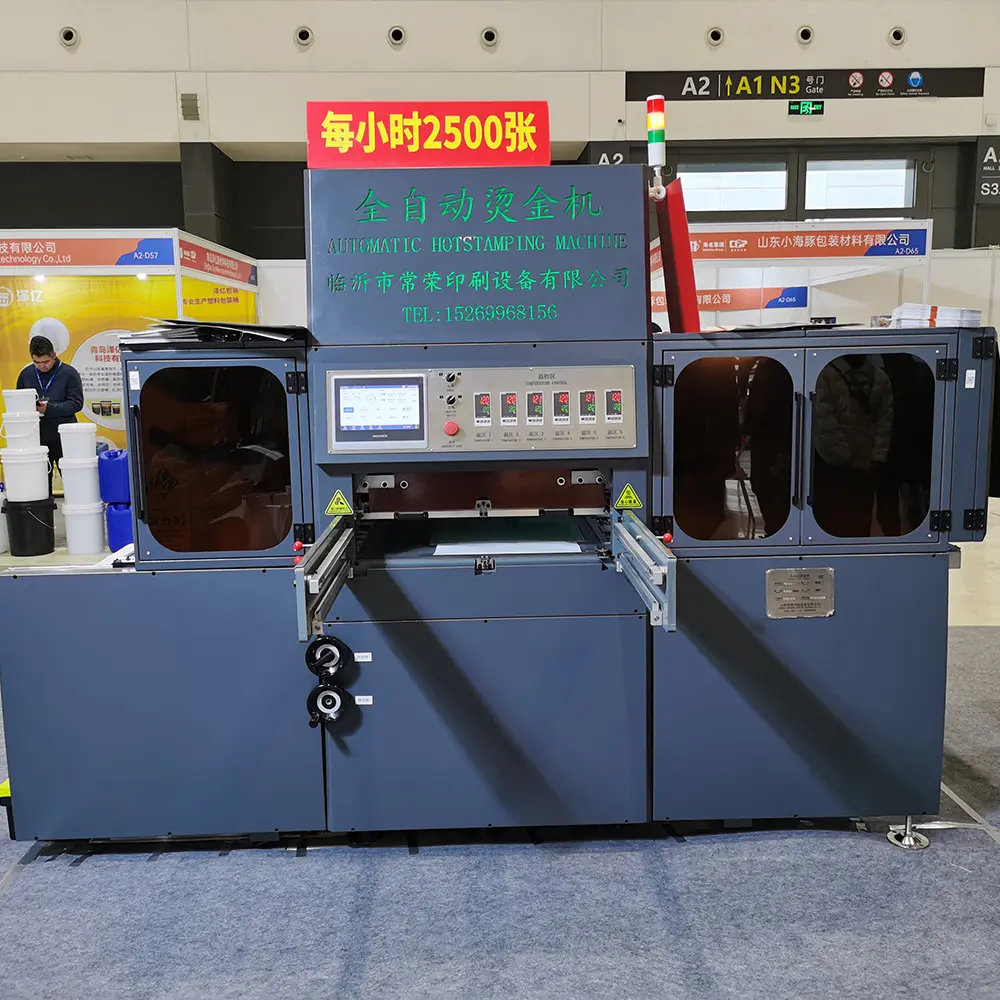

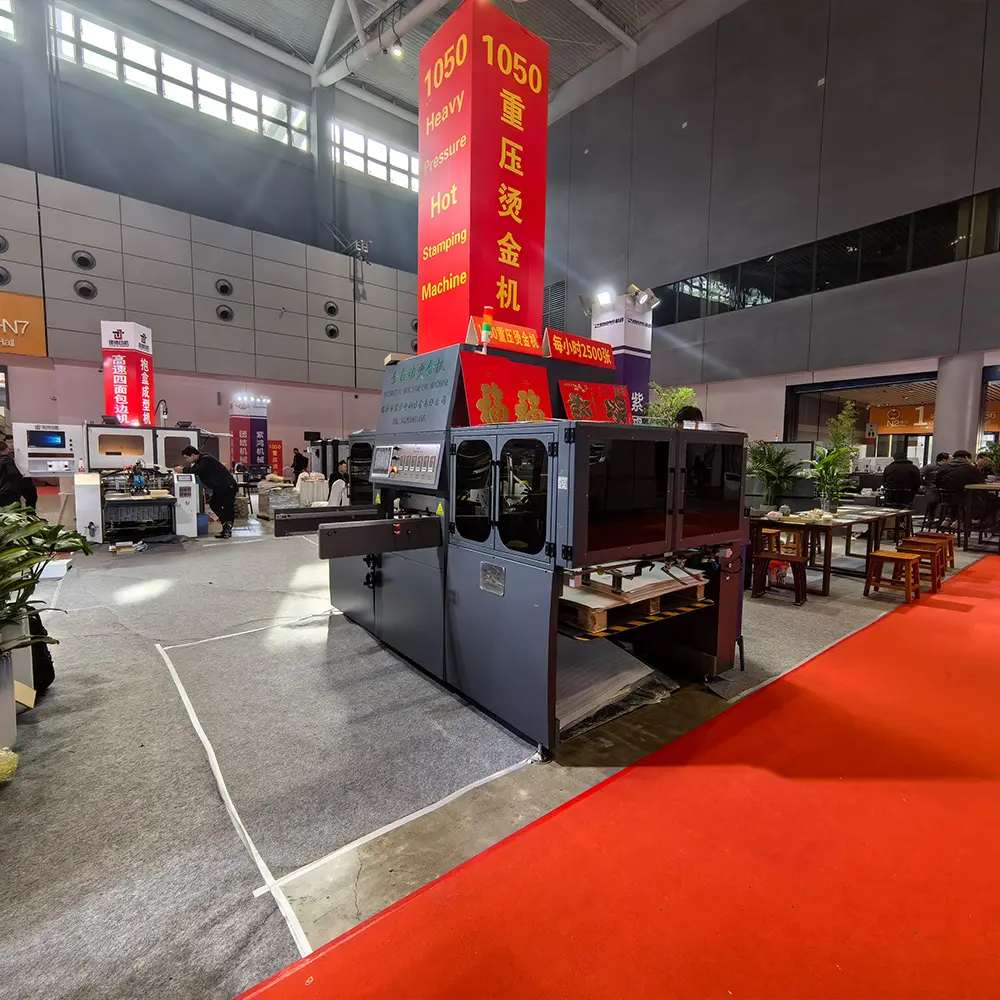

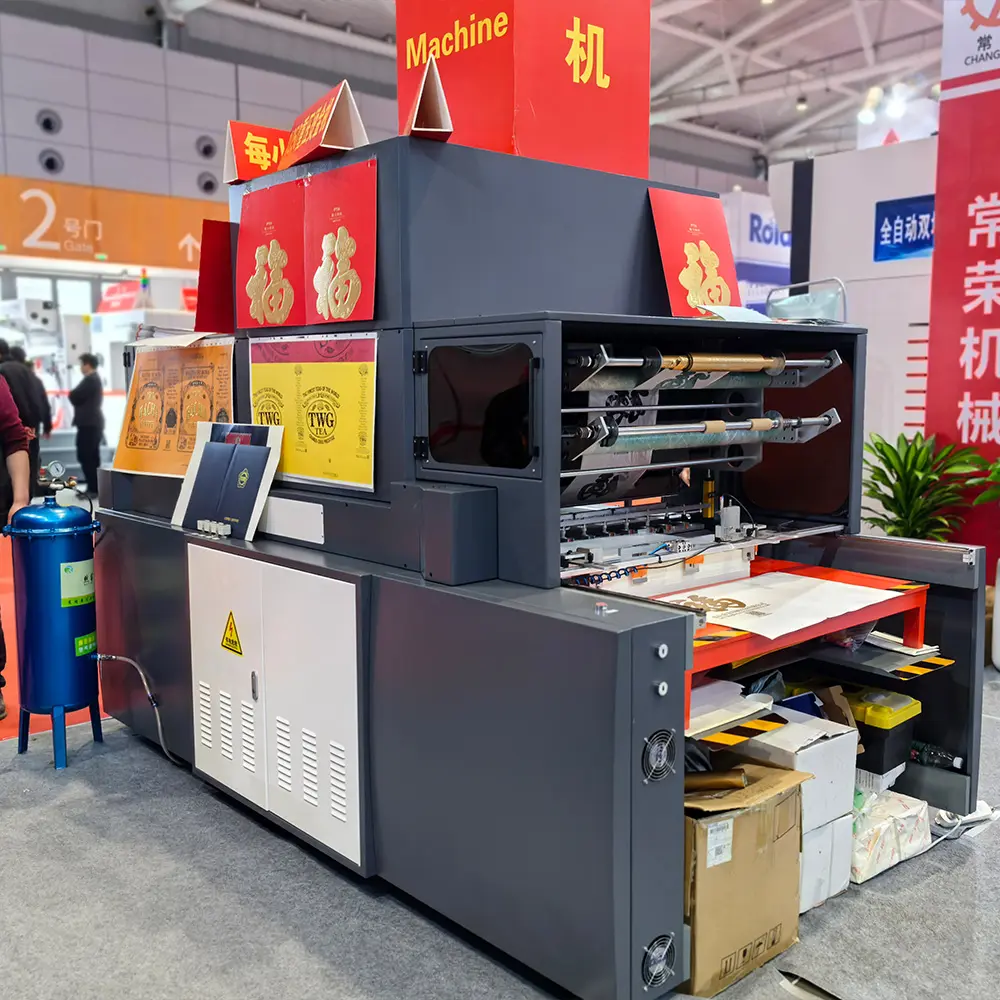

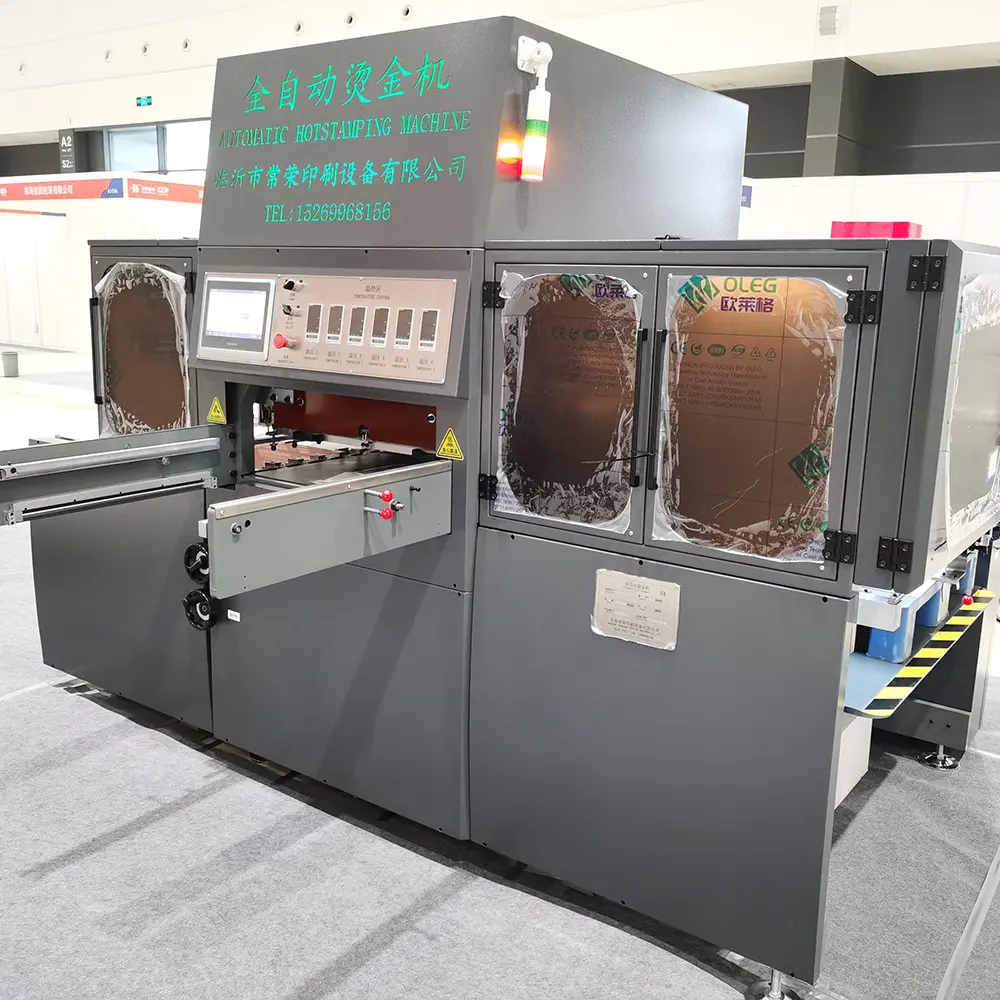

1050 Fully Automatic Mechanical Flat Pressure Hot Stamping And Embossing Machine

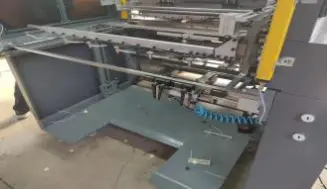

Here are patting cylinders on the left, right and back of the paper part to ensure smooth and neat paper conveying process.
The
paper separation device has the functions of separating the blower, separating the
paper and stripping the brush to ensure that the paper is not double.
The position of paper accumulation can be adjusted left and right.
The paper taking device is driven by servo
motor, and the speed can be adjusted freely. The paper taking shaft is equipped with a
blower stripping device, which can realize the separation of paper and electrochemical
aluminum when large area hot stamping.

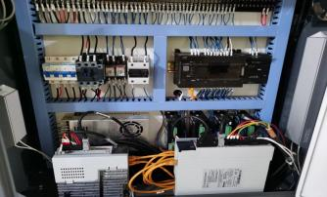

Equipped with Omron electrical control
system.
The pressure of the equipment
adopts a mechanical four-link mechanism, which can achieve stable work under large pressure.

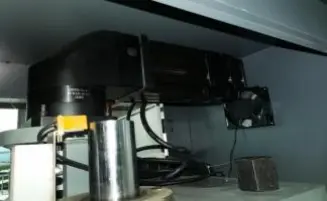

The main motor adopts Kinco servo motor, equipped with planetary precision reducer, to achieve high torque output.

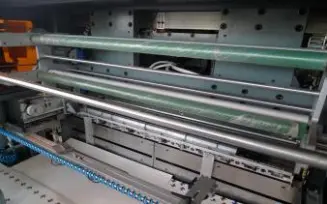

The two-axis electrolytic aluminum foil pulling device can realize two groups of different modes of electrolytic aluminum jumping at the same time.

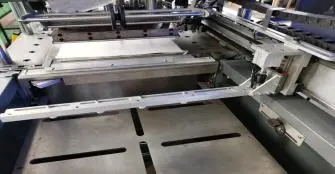

Both the lifting platform and the receiving platform can be lifted electrically, and
automatic lifting and lowering can be realized according to the height of the paper.

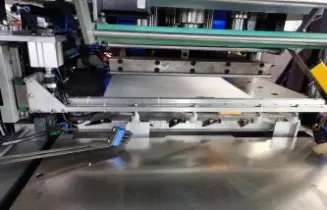

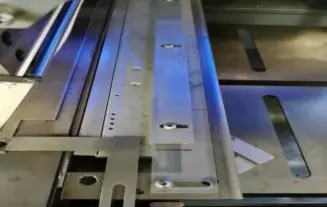

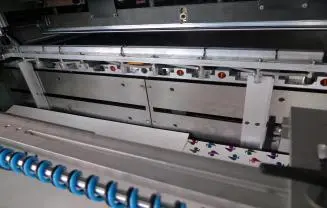

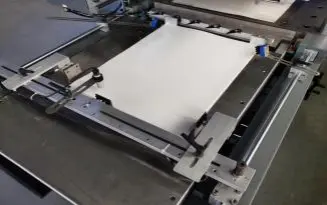

The device has the function of front gauge and pull gauge, which can realize the accurate registration positioning of paper.

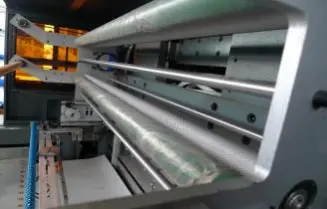

The paper taking shaft is separated from the paper discharging shaft, and the two-axis
design is adopted to make the equipment run more efficiently.

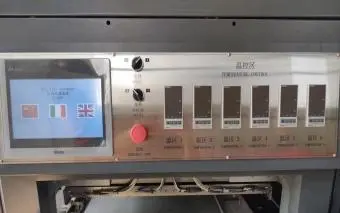

Equipment operation adopts large screen design, higher visualization.

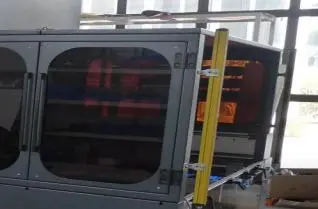

The paper feeding part and receiving part of the equipment are equipped with protective devices, and the main operation part is equipped with protective photoelectric, which can be stopped immediately if touched.

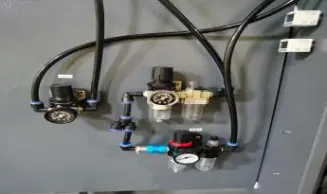

The air source can be adjusted independently.
Technical Data
| Max paper size | 1050mm×750mm |
| Min paper size | 100mm×100mm |
| Maximum hot stamping size | 1000mm×750mm |
| Maximum hot stamping speed | 2500S/H |
| Gripper margin | ≥15mm |
| Stamping accuracy | ≤±0. 1mm(die cutting and stamping) |
| Maximum hot stamping pressure | 150tons |
| Max feeder pile height | 700mm（without wooden pallet） |
| Max delivery pile height | 750mm（wooden pallet included） |
| Number of bronzing | Two shaft |
| Heating Temperature range | heating zones,20-200℃ Adjustable |
| Net weight approx | 6.5tons |
| Main motor wattage | 7.5KW |
| Full load wattage | 30KW |
| Overall dimension | 2800mm(L) ×1700mm(W)×2000mm(H) |
